BluePrint BP3505CTF 350CI Base Crate Engine, Longblock, Injection

Ships FREE!

#227BP3505CTF

BluePrint BP3505CTF 350CI Base Crate Engine, Longblock, Injection

New 350 Base Dressed Longblock Crate Engine Longblock, Fuel Injection

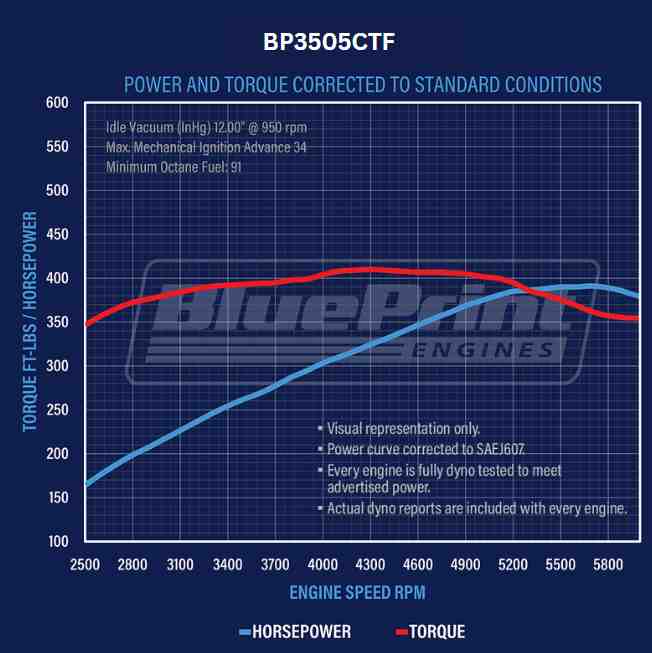

HP And Torque: 390 HP / 410 FT LBS
Compression Ratio: 9.2:1

Level Of Dress:

#2 Base Dressed - EFI

#1 Long Block #2 Base Dressed - Carbureted #3 Deluxe Dressed - Carbureted #3 Deluxe Dressed - Carbureted - Black Pulley Kit#4 Deluxe Dressed - EFI #4 Deluxe Dressed - EFI - Black Pulley Kit

$7,099.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Deluxe Crate Engine Crate Engine Type, Oil Pan Included

New 350 Base Dressed Longblock Crate Engine Longblock, Fuel Injection
HP And Torque: 390 HP / 410 FT LBS
Compression Ratio: 9.2:1
Aluminum Heads
Hydraulic Roller Cam

See more details

Key Specs

Crate Engine Type	Deluxe Crate Engine
Compression Ratio	9.2:1
Engine Displacement	350 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BP3505CTF Details

New 350 Base Dressed Longblock Crate Engine Longblock, Fuel Injection
HP And Torque: 390 HP / 410 FT LBS
Compression Ratio: 9.2:1
Aluminum Heads
Hydraulic Roller Cam
Cast Iron Crankshaft
Hypereutectic Pistons

BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:
Cast Iron Crankshaft
3.480" Stroke
Forged 5.700" connecting rods
Hypereutectic pistons
Internal Front/ External Rear engine balance

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners

CAM SPECS:
Cam Type: Roller
.495 Intake .502 Exhaust
220 Intake / 224 Exhaust duration
@ .050 - 114 degree lobe separation

IGNITION TIMING:
32 Degrees Total at 3500 RPM

ALSO INCLUDES:
Valve covers
Oil pan
Timing cover
Aluminum intake
HEI distributor
EFI system
Dyno test results shipped with engine

WARRANTY:
30 month / 50,000 mile

Guides & Documents

Crate Engines Installation Instructions (227BP3505CTF)

Crate Engines Technical Information (227BP3505CTF)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

BluePrint Engines BP3505CTF Specifications

KEY SPECS
MFG. Part #	BP3505CTF
Brand	BluePrint Engines
Crate Engine Type	Deluxe Crate Engine
Compression Ratio	9.2:1
Engine Displacement	350 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Cast Iron
Carburetor Included	Yes
Intake Manifold Included	Yes
Distributor Included	No
Connecting Rod Material	Forged Steel
Valve Covers Included	Yes
Cylinder Heads Included	Yes
Throttle Body Included	Yes
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	No
Wiring Harness Included	No

GENERAL
Combustion Chamber Volume	64cc
Camshaft Duration (.050 in)	220° intake / 224 ° exhaust
Camshaft Lift (in)	.495 intake / .502 exhaust
Bore x Stroke (in)	4.040" x 3.480"
