BluePrint BP3479RCTC 342 Stroker Crate Engine, Base Dressed, RS

Ships FREE!

BluePrint BP3479RCTC 342 Stroker Crate Engine, Base Dressed, RS
BluePrint Engines

|

#227BP3479RCTC

BluePrint BP3479RCTC 342 Stroker Crate Engine, Base Dressed, RS

  • BluePrint Engines Small Block Ford 342 Stroker Crate Engine
  • Carbureted Base Dressed Longblock with Aluminum Heads, Rear Sump Pan and Roller Cam
  • HP And Torque: 415 HP / 415 FT LBS
See More

Level Of Dress:

#2 Base Dressed

#1 Long Block#3 Deluxe Dressed - Black Pulley Kit

$8,199.00

/each

In Stock

Order soon, only 1 left in stock!


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Long Block Crate Engine Type, 10.0:1 Compression Ratio

  • BluePrint Engines Small Block Ford 342 Stroker Crate Engine
  • Carbureted Base Dressed Longblock with Aluminum Heads, Rear Sump Pan and Roller Cam
  • HP And Torque: 415 HP / 415 FT LBS
  • Compression Ratio: 10.0:1
  • Aluminum Heads
See more details

Key Specs

Crate Engine TypeLong Block
Compression Ratio10.0:1
Engine Displacement342 cu. in.
Camshaft TypeHydraulic Roller
Cylinder Head MaterialAluminum
See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BP3479RCTC Details

  • BluePrint Engines Small Block Ford 342 Stroker Crate Engine
  • Carbureted Base Dressed Longblock with Aluminum Heads, Rear Sump Pan and Roller Cam
  • HP And Torque: 415 HP / 415 FT LBS
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Cast Steel Crank
  • Forged Pistons

BLOCK:
New standard bore stroker style block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
2-Bolt Main
1-Piece Rear Main Seal
Mech fuel pump provision: Yes


ROTATING ASSEMBLY:
New BluePrint Cast steel crankshaft
3.400" Stroke
Forged I-beam 5.400" connecting rods
Forged pistons
28oz External balance


CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9008
60cc chamber
2.02" intake/1.60" exhaust valves
190cc intake/65cc exhaust runners


CAM SPECS:
Cam Type: Roller
.543 Intake .554 Exhaust
218 Intake / 226 Exhaust duration
@ .050 - 112 degree lobe separation

IGNITION TIMING:
34 Degrees Total at 3500 RPM


ALSO INCLUDES:
Dual plane, satin aluminum intake manifold
600cfm carburetor
Distributor
Valve covers
Painted rear sump oil oil pan

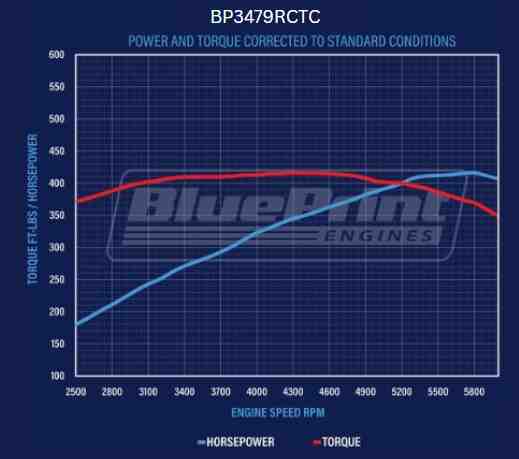

Dyno test results shipped with engine


WARRANTY:
30 month / 50,000 mile

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
CA Prop 65
CARB warning

BluePrint Engines BP3479RCTC Specifications

KEY SPECS
MFG. Part #BP3479RCTC
BrandBluePrint Engines
Crate Engine TypeLong Block
Compression Ratio10.0:1
Engine Displacement342 cu. in.
Camshaft TypeHydraulic Roller
Cylinder Head MaterialAluminum
Piston MaterialForged Aluminum
Crankshaft MaterialCast Steel
Carburetor IncludedYes
Intake Manifold IncludedYes
Distributor IncludedYes
Connecting Rod MaterialForged Steel
Valve Covers IncludedYes
Engine BalanceExternal
Cylinder Heads IncludedYes
Throttle Body IncludedNo
Timing Cover IncludedYes
Oil Pan IncludedYes
Water Pump IncludedNo
Harmonic Balancer IncludedYes
Flexplate IncludedNo
Flywheel IncludedYes
Air Cleaner IncludedNo
Spark Plugs IncludedNo
Spark Plug Wires IncludedYes
Computer IncludedNo
Wiring Harness IncludedNo
GENERAL
Torque415 ft./lbs.
Horsepower415 horsepower
Combustion Chamber Volume65cc
Camshaft Duration (.050 in)218° intake / 226° exhaust
Camshaft Lift (in).543 intake / .554 exhaust
