BluePrint BP3472CTC Ford 347 Stroker, Dressed Engine, Cast Iron Heads
Discontinued
This item is currently not available
Shop all BluePrint Ford Crate Engines
Key Specs
| Crate Engine Type | Long Block |
| Engine Displacement | 347 cu. in. |
| Horsepower | 330 horsepower |
| Compression Ratio | 9.5:1 |
| Torque | 380 ft./lbs. |
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBluePrint Engines BP3472CTC Details
BluePrint Engines BP3472CTC Details
True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

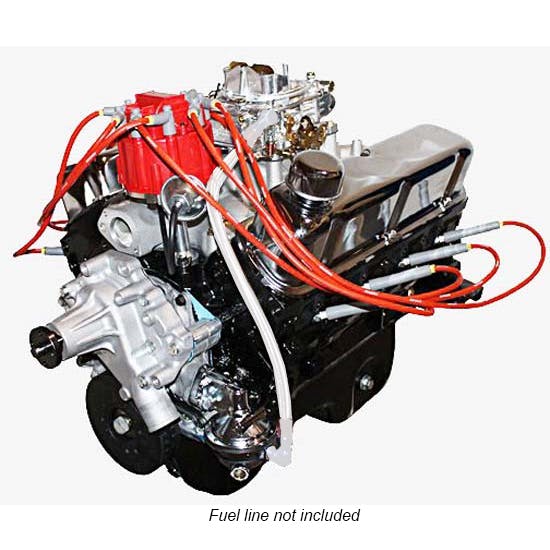

Ford 347 Stroker - Dressed Engine - Cast Iron Heads - Flat Tappet Cam
Note: fuel lines shown to carburetor are NOT included and would need to be purchased separately
Overview
- HP & Torque: 330 HP / 380 FT LBS
- Compression Ratio: 9.5:1
- Cast Iron Heads
- Flat Tappet Cam
- Cast Steel Crank
- Part #: BP3472CTC
Block
- Hand picked seasoned 1986-1995 blocks bored .040 over
- Square and parallel decked
- Align honed main bearing bore
- Cylinders honed on computer controlled machine to within .0002 straightness and roundness
- Cylinders are sonic tested for thickness
Rotating Assembly
- New cast steel crankshaft
- Forged I beam rods
- Hypereutectic pistons
- Hastings Moly rings
- Balanced rotating assembly
- Melling high volume oil pump
- Flat tappet hydraulic lifter camshaft
- Heavy duty double roller timing set
Cylinder Heads
- Modified Ford cast iron heads
- Hardened retainers and springs
- 1.94 swirl polished intake valves
- 1.60 swirl polished exhaust valves
- Hardened push rods
Cam Specs
- Cam Type: Flat Tappet
- .496 Intake .520 Exhaust
- 224 Intake / 234 Exhaust duration
- @ .050 - 110 degree lobe separation
Ignition Timing
- 34 degrees total at 3500 RPM
Also Includes
- Dual plane satin aluminum intake manifold
- 600 cfm carburetor
- HEI Distributor
- Valve covers, Oil Pan and Timing Cover
- Harmonic Balancer
- Waterpump
- Fuel Pump
- Comes with 30 month / 50,000 mile warranty
Warranty
- 30 month / 50,000 mile
Notes
This engine requires a 28oz weighted flexplate/flywheel.BluePrint Engines recommends a 1800- 2200 rpm stall converter.Firing order for this engine is 1,3,7,2,6,5,4,8
Warranty Information
Click for details
Warranty Information
Click for details
Warranty Information (PDF)
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
BluePrint Engines BP3472CTC Specifications
BluePrint Engines BP3472CTC Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | BP3472CTC |
| Brand | BluePrint Engines |
| Crate Engine Type | Long Block |
| Engine Displacement | 347 cu. in. |
| Horsepower | 330 horsepower |
| Compression Ratio | 9.5:1 |
| Torque | 380 ft./lbs. |
| Camshaft Type | Hydraulic Flat Tappet |
| Cylinder Head Material | Cast Iron |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Cast Steel |
| Camshaft Duration (.050 in) | 224° intake / 234° exhaust |
| Camshaft Lift (in) | .496 intake / .520 exhaust |
| Bore x Stroke (in) | 4.000" bored .040 over x 3.400" |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Connecting Rod Material | Forged Steel |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Wiring Harness Included | Yes |
| Imbalance | 28 oz. |
| GENERAL | |
| Warranty | 30 month / 50,000 miles |
| Assembled | Yes |
| Camshaft Included | Yes |
| Block | Hand picked, seasoned, square and parallel decked, 2 bolt main |
| Notes | Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR |
