BluePrint BP302CT Small Block Ford 302 Base Crate Engine

Ships FREE!

#227BP302CT

BluePrint BP302CT Small Block Ford 302 Base Crate Engine

Name: BluePrint BP302CT Small Block Ford 302 Base Crate Engine
Brand: BluePrint Engines
SKU: 227BP302CT
Price: 6299 USD
Availability: LimitedAvailability

Write a Review

1 Question

Level Of Dress:

#1 Long Block

#2 Base Dressed - Carbureted #3 Deluxe Dressed - Carbureted #3 Deluxe Dressed - Carbureted - Black Pulley Kit #2 Base Dressed - Fuel Injected

$6,299.00

/each

In Stock

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Long Block Crate Engine Type, 10.7:1 Compression Ratio

See more details

Key Specs

Crate Engine Type	Long Block
Compression Ratio	10.7:1
Engine Displacement	302 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BP302CT Details

BluePrint Engines 302CI Small Block Ford Cruiser Crate Engine Longblock

HP And Torque: 361 HP / 334 FT LBS
Compression ratio: 9.4:1
Aluminum heads
Hydraulic roller cam
Cast steel crank
Hypereutectic pistons

BLOCK:

NEW BluePrint cast iron block
4-bolt main
4.000" bore
1-Piece rear main seal
Mech fuel pump provision: Yes

ROTATING ASSEMBLY:

3.000" stroke
OEM type 5.090" connecting rods
Hypereutectic pistons
50oz external balance

CYLINDER HEADS:

BluePrint aluminum cylinder heads -HP9008
60cc chamber
2.02" intake/1.60" exhaust valves
190cc intake/60cc exhaust runners

CAM SPECS:

Roller cam
.533 intake / .544 exhaust
215 intake / 220 exhaust duration
@ .050 - 114 degree lobe separation

IGNITION TIMING:

10-16 degrees initial, 32-34 total

ALSO INCLUDES:

Front sump oil pan
Valve covers
Timing cover

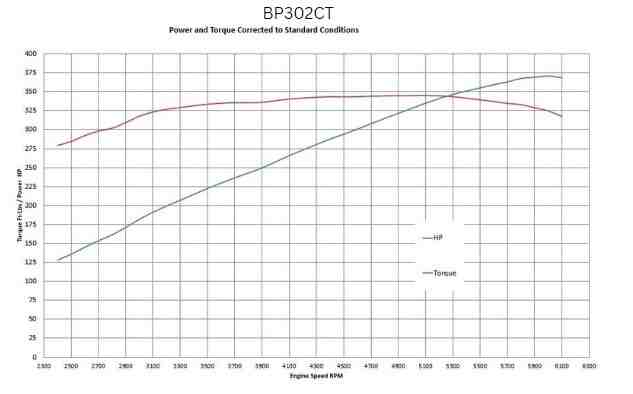

Dyno test results shipped with engine

WARRANTY:

30 month / 50,000 mile

Guides & Documents

Crate Engines Installation Instructions (227BP302CT)

Crate Engines Technical Information (227BP302CT)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

BluePrint Engines BP302CT Specifications

KEY SPECS
MFG. Part #	BP302CT
Brand	BluePrint Engines
Crate Engine Type	Long Block
Compression Ratio	10.7:1
Engine Displacement	302 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Cast Steel
Carburetor Included	No
Intake Manifold Included	Yes
Distributor Included	No
Valve Covers Included	Yes
Engine Balance	Internal
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	Yes
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	No
Wiring Harness Included	No

GENERAL
Combustion Chamber Volume	60cc
Camshaft Duration (.050 in)	220° intake / 224 ° exhaust
Camshaft Lift (in)	.533 Intake / .554 Exhaust
Bore x Stroke (in)	4.060" x 3.000"
GTIN Code	887753841230
