BluePrint 540 ProSeries Stroker Longblock, Power Adder

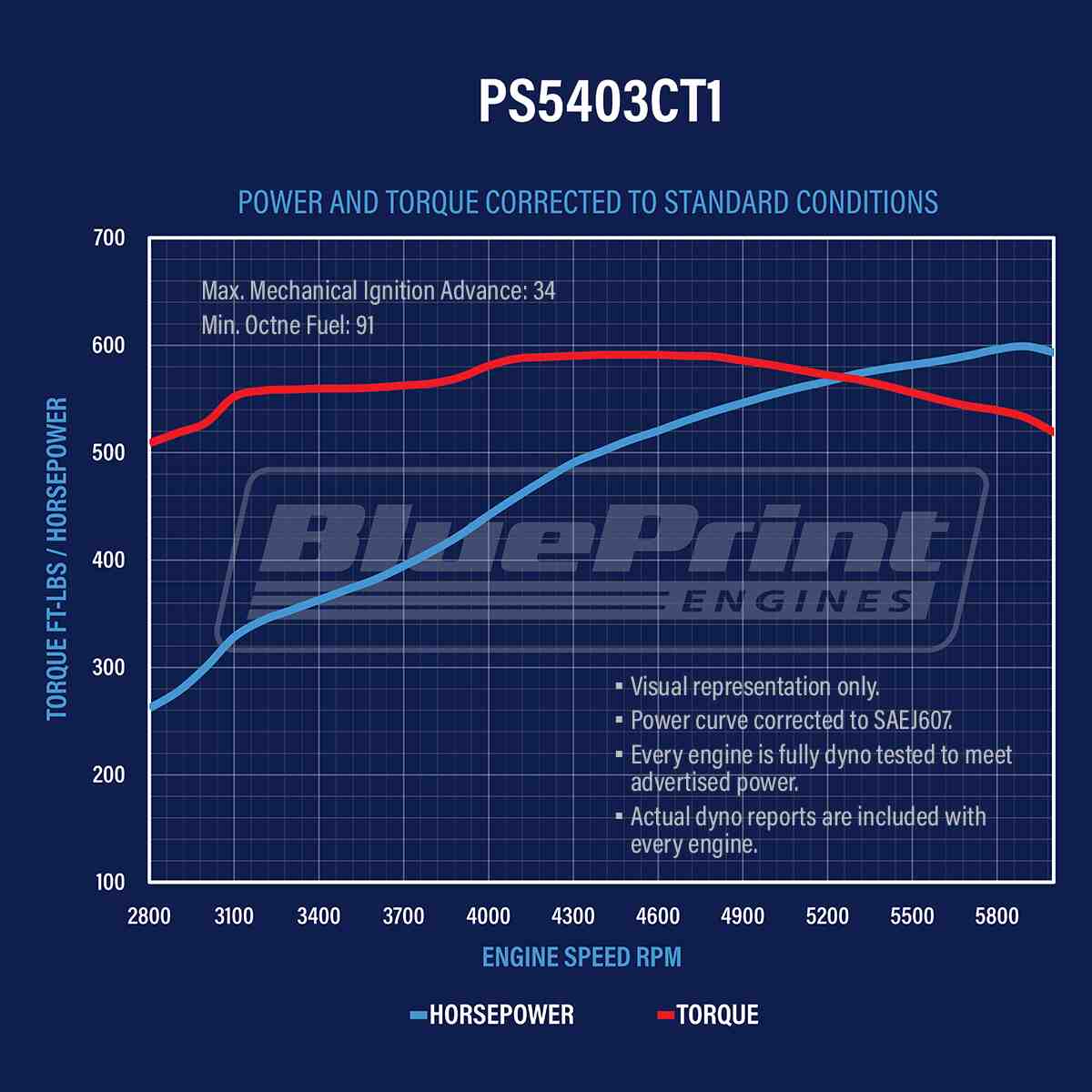

• 600 HP and 590 Ft/lbs Torque
• Compression Ratio: 8.5:1
• Aluminum Heads
• Solid Roller Cam
• Forged Crank
• Forged Pistons

BLOCK:

• NEW BluePrint Cast Iron Block
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.500" Bore
• 1-Piece Rear Main Seal
• Mech fuel pump provision: Yes
• Standard Deck

ROTATING ASSEMBLY:

• New BluePrint Forged Crankshaft
• 4.250" Stroke, Dual Keyway
• Forged H-beam 6.385" connecting rods
• Forged Pistons

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads -PS8013
• 119cc chamber
• 2.30" intake/1.88" exhaust valves
• 316cc intake/124cc exhaust runners
• Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
• Must verify header/exhaust clearance

CAM SPECS:

• Cam Type: Solid Roller
• .652 Intake .652 Exhaust
• 255 Intake / 262 Exhaust duration
• @ .050 - 114 degree lobe separation

IGNITION TIMING:

• Initial timing - 10-16° and Total timing 32-34°

ALSO INCLUDES:

• Valve covers, oil pan and timing cover
• Roller Rockers with Stud Girdles
• Dyno test results shipped with engine

WARRANTY:

• 30 month / 50,000 mile

NOTES:

• Built to accept Power Adders
• New BluePrint block manufactured and machined in the USA.
• Not for EGR
• Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting
• Must verify header/exhaust clearance
