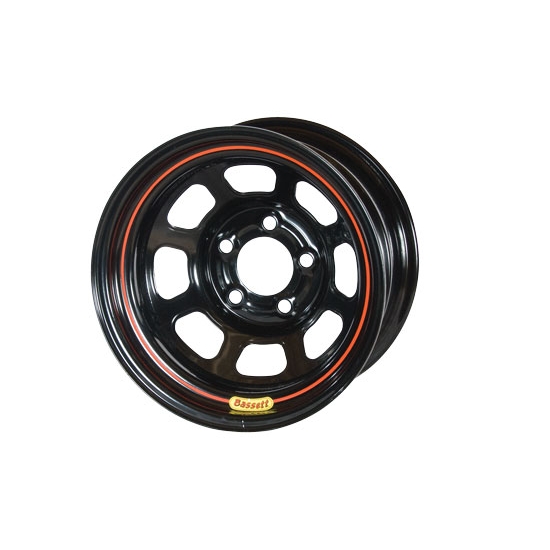

Bassett 50SC3B 15X10 D-Hole Lite 5 on 4.75 3 In BS Black Beaded Wheel

#27850SC3B

Bassett 50SC3B 15X10 D-Hole Lite 5 on 4.75 3 In BS Black Beaded Wheel

Name: Bassett 50SC3B 15X10 D-Hole Lite 5 on 4.75 3 In BS Black Beaded Wheel
Brand: Bassett
SKU: 27850SC3B
Price: 144.99 USD
Availability: InStock
Rating: 4 (1 reviews)

1 Review

Ask a Question

Backspace / Color:

3 Inch / Black / Beaded

1 Inch / Black 1 Inch / Black / Beaded 2 Inch / Black 2 Inch / Black / Beaded 2 Inch / Black / Beadlock 3 Inch / Black3 Inch / Black / Beadlock 4 Inch / Black 4.5 Inch / Black 4.5 Inch / Black / Beaded 4.75 Inch / Black / Beaded 4 Inch / Black / Beaded 4 Inch / Black / Beadlock 5 Inch / Black 5.5 Inch / Black 5.5 Inch / Black / Beaded 5.75 Inch / Black 5 Inch / Black / Beaded 6 Inch / Black 6 Inch / Black / Beaded

$144.99

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

15 Inch Wheel Diameter, 10" Width, 3" Wheel Backspace

See more details

Key Specs

MFG. Part #	50SC3B1
Wheel Diameter	15 Inch
Width	10"
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Bassett 50SC3B1 Details

The classic Bassett Racing Wheel D-Hole center design is combined with our 15" diameter lightweight spun form rim shells and available in a variety of widths from 7" to 14" wide. Bassett produces the strongest, lightest and truest steel wheel shells on the market using its three in-house CNC metal spinning lathes. Lightweight and low runout (under .030") thanks to spun-form wheel shells produced in-houseReinforced torque ring and forged coining on center increases durabilityThe 5/8" valve stem hole is located behind the center to avoid clippingLarger D-holes are designed to facilitate handling and lower pit stop times NOTE: For easier tire mounting, these wheels do not have a tire safety bead. For dirt applications, make sure you select a wheel with a safety bead at the time of order.

For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Guides & Documents

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

Bassett 50SC3B1 Specifications

KEY SPECS
MFG. Part #	50SC3B1
Brand	Bassett
Wheel Diameter	15 Inch
Width	10"
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Wheel Backspace	3"
Wheel Material Type	Steel
Wheel Offset	-64 mm
Wheel Backspace Range	3.000" - 3.499"
Finish	Powder Coated
Color	Black
Beadlock Included	No
Material Type	Steel
Bolt Pattern	5 on 4.75"
Diameter	15"

GENERAL
Sold in Quantity	Each
DOT-Approved	No
Valve Stem Included	No
Lug Nut Seat Style	45 Degree Conical
Center Cap Included	No
Lug Nuts Included	No
Beadlock	No

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

works great no issues

4.0

11 years ago

james

seattle

Verified

everything about the rim works great, balanced perfectly. the only downside is you need a aftermarket valvestem

Would Recommend

Showing 1 of 1 reviews
