Product Summary

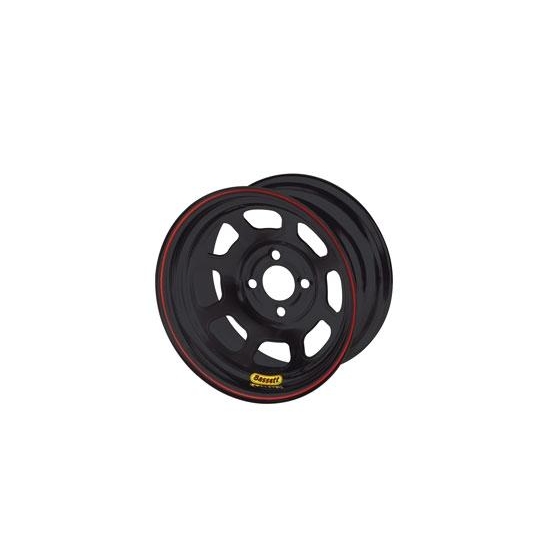

14 Inch Wheel Diameter, Steel, 7" Width, Powder Coated

  • Wheels have a 14" diameter and are 7" wide
  • Made from CNC spun-formed steel
  • Wheels are lightweight and have a low runout (under .030")
  • A reinforced torque ring and forged coining on center increases durability
  • Features 4x100 mm bolt pattern

Key Specs

Wheel Diameter14 Inch
Material TypeSteel
Width7"
Wheel Bolt Pattern (in.)Metric Pattern Only
Wheel Bolt Pattern (mm)4x100 mm

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Bassett 47SH44X7 Details

Bassett expanded our D-Hole Lightweight line of wheels for FWD and mini-stock cars that use a 4 bolt or 5 bolt pattern hub hat/rotor and run a 14" tire. We combine our NASCAR-proven 8 D-Hole center with a lightweight, CNC spun-form rim shell to create the highest quaility, fastest 14 x 7 and 14 x 8 FWD and mini-stock steel race wheel available. Lightweight and low runout (under .030") thanks to spun-form wheel shells produced in-house. Reinforced torque ring and forged coining on center increases durability. The 5/8" valve stem hole is located behind the center to avoid clippings.

PLEASE NOTE: Bassett Racing Wheels are lug-centric, which means the wheel is constructed and trued off of the bolt circle. The center hub bore hole can not be used to balance Bassett Racing Wheels. We recommend using an experienced tire mounter with a bolt pattern adapter plate that allows for balancing off of the bolt circle. Bassett Racing Wheels also require 45 degree chamfer lug nuts.

For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Bassett 47SH44X7 Specifications

KEY SPECS
MFG. Part #47SH44X7
BrandBassett
Wheel Diameter14 Inch
Material TypeSteel
Width7"
Wheel Bolt Pattern (in.)Metric Pattern Only
Wheel Bolt Pattern (mm)4x100 mm
Wheel Backspace4"
Wheel Offset0 mm
Wheel Backspace Range4.000" - 4.499"
FinishPowder Coated
ColorBlack
Beadlock IncludedNo
GENERAL
DOT-ApprovedNo
Diameter14"
Sold in QuantityEach
Lug Nut Seat Style45 Degree Conical
BeadlockNo
Bolt Pattern4 x 100mm
