Product Summary

13 Inch Wheel Diameter, Steel, 8" Width, Powder Coated

    Key Specs

    Wheel Diameter13 Inch
    Material TypeSteel
    Width8"
    Wheel Bolt Pattern (in.)Metric Pattern Only
    Wheel Bolt Pattern (mm)4x100 mm

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Bassett 38SH23X8 Details

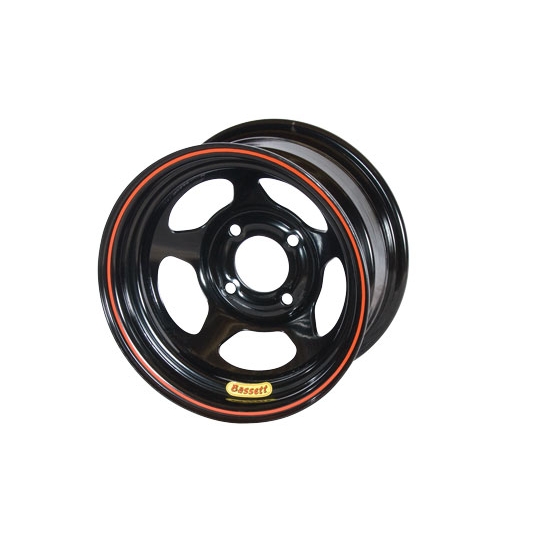

    The 13" Bassett Inertia Advantage series wheels use the Inertia Advantage five-spoke center design and a high quality spun-form shell. The brake cooling holes feature almost 9 square inches more area, while the weight placement in the center helps the wheel rotate faster. Also, CNC spun form rim shell construction and strict quality control means runout is much lower than other 13" wheels on the market. Lightweight and low runout (under .030") thanks to spun-form wheel shells produced in-house. Reinforced torque ring and forged coining on center increases durability. The 5/8" valve stem hole is located behind the center to avoid clipping. Larger brake cooling holes reduce brake temperature and prevent fading during long feature races.

    PLEASE NOTE: Bassett Racing Wheels are lug-centric, which means the wheel is constructed and trued off of the bolt circle. The center hub bore hole can not be used to balance Bassett Racing Wheels. We recommend using an experienced tire mounter with a bolt pattern adapter plate that allows for balancing off of the bolt circle. Bassett Racing Wheels also require 45 degree chamfer lug nuts.

    For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

    For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

    Bassett 38SH23X8 Specifications

    KEY SPECS
    MFG. Part #38SH23X8
    BrandBassett
    Wheel Diameter13 Inch
    Material TypeSteel
    Width8"
    Wheel Bolt Pattern (in.)Metric Pattern Only
    Wheel Bolt Pattern (mm)4x100 mm
    Wheel Backspace2"
    Wheel Offset-64 mm
    Wheel Backspace Range2.000" - 2.499"
    FinishPowder Coated
    ColorBlack
    Beadlock IncludedNo
    GENERAL
    DOT-ApprovedNo
    Diameter13"
    Sold in QuantityEach
    Lug Nut Seat Style45 Degree Conical
    BeadlockNo
    Bolt Pattern4 x 100mm
