Add to Cart
$124.95

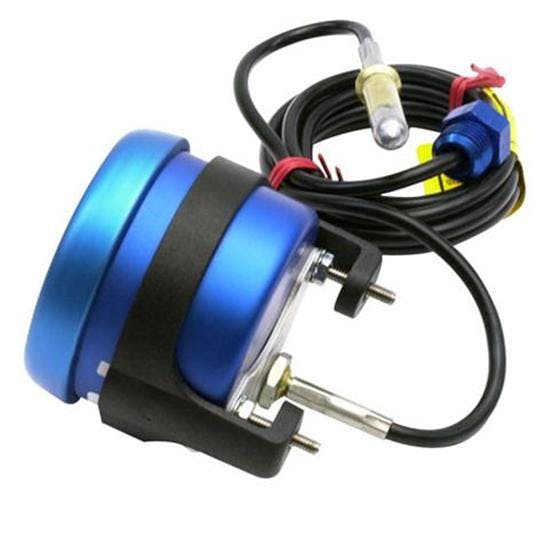

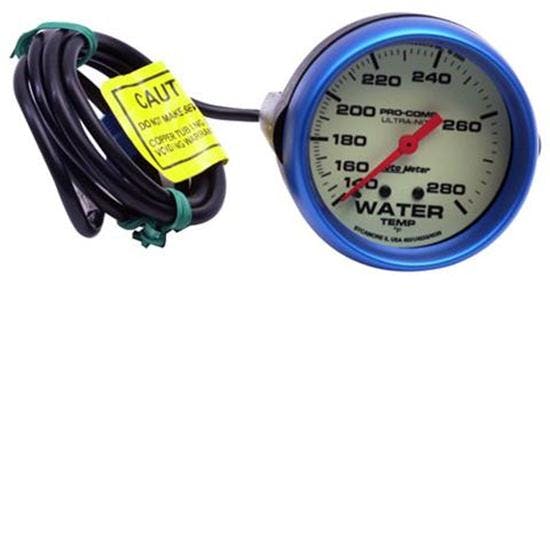

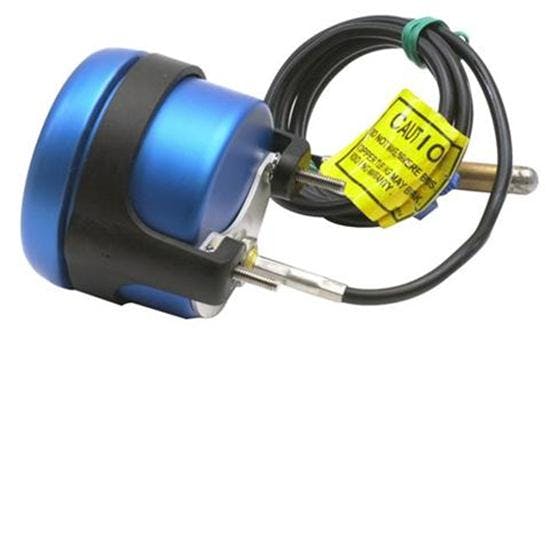

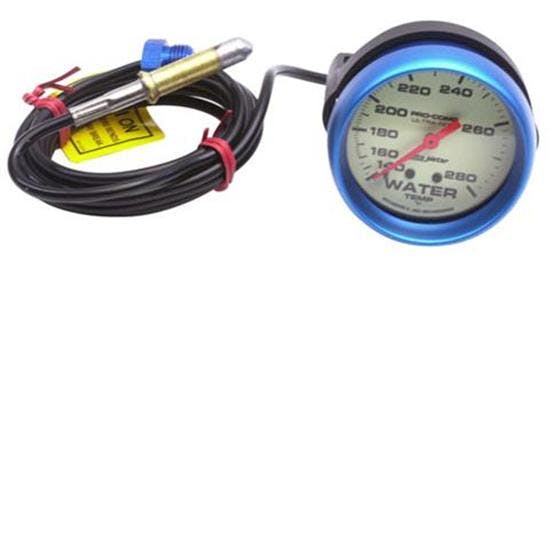

AutoMeter 4535 2-5/8 Inch Water Temperature Gauge,Ultra-Nite Glow
AutoMeter 4535 2-5/8 Inch Water Temperature Gauge,Ultra-Nite Glow

AutoMeter 4535 2-5/8 Inch Water Temperature Gauge,Ultra-Nite Glow

Universal Fit, 2-5/8" Gauge Diameter, Analog Gauge Series, Mechanical Gauge Style, Ivory

1 Review | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
AutoMeter 4535 2-5/8 Inch Water Temperature Gauge,Ultra-Nite Glow
AutoMeter 4535 2-5/8 Inch Water Temperature Gauge,Ultra-Nite Glow
AutoMeter 4535 2-5/8 Inch Water Temperature Gauge,Ultra-Nite Glow
AutoMeter 4535 2-5/8 Inch Water Temperature Gauge,Ultra-Nite Glow
AutoMeter 4535 2-5/8 Inch Water Temperature Gauge,Ultra-Nite Glow
X
AutoMeter 4535 2-5/8 Inch Water Temperature Gauge,Ultra-Nite Glow
AutoMeter 4535 2-5/8 Inch Water Temperature Gauge,Ultra-Nite Glow
AutoMeter 4535 2-5/8 Inch Water Temperature Gauge,Ultra-Nite Glow
Zoomed In Image
Part # 1824535
$124.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Luminescent dials glow green at night for dimly lit tracks when no battery is available to light conventional instruments
  • For racing use only - Not intended for street applications
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy and durability in the harshest environments while being simple to install
  • Gauge kit includes 1/2" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Details

Gauge Diameter:
2-5/8"
Gauge Series:
Analog
Gauge Style:
Mechanical
Gauge Face Color:
Ivory
Lettering Color:
Black
Needle Color:
Fluorescent Red
Gauge Range:
140-280 °F
Body Diameter:
2.62"
Body Length:
1.43"
Depth:
3.45"
Center to Center:
2.10"
Stud Length:
.90"
Stud Diameter:
.16"
Bezel Finish:
Blue
Bezel Style:
Super Bezel
Lighting Type:
Glow in the dark dial face
Includes Mounting Bracket(s):
Yes
Included Tubing:
4 ft. Capillary Tube
MFG. Part #:
4535
GTIN Code:
046074045356
Sold in Quantity:
Each

Info

Auto Meter Pro-Comp gauges with blue anodized bezel are designed for the extreme conditions of dirt track racing. Temperature meter is fully sealed waterproof housing keeps moisture and debris out so it can be hosed off after the races. Ultra-Nite glow-in-the-dark face eliminates need for a back light. Keeps them simple and dry.

Mechanical operation with a 2-5/8" diameter.

Notes

Ships with the following AutoMeter products:

Adapters/Fittings:  1/2"" NPT adapter/fitting.
Tubing:  4 ft. Capillary Tube
Mounting Hardware:  3245

Charts

Installation Instructions (PDF)

Included Adapter/Fitting

1824535 4535 1500 Engine Coolant Temperature Gauges Gauge, Water Temp, 2 5/8", 140-280ºF, Mech., 4ft., Glow in Dark, Ultra-Nite White Blue Super Bezel 2-5/8" Glow in the dark dial face Fluorescent Red Mechanical 140-280 °F 1/2"" NPT adapter/fitting. 4 ft. Capillary Tube Bracket Included

Notes

Includes 4' foot capillary tube. Sensor has a 5/8"-18 thread fitting and includes an adapter to 1/2" NPT. Gauge glows in the dark and has no provision for lighting.

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
