Product Summary

13 Inch Wheel Diameter, 8" Width, 2" Wheel Backspace

  • Recommended for dirt use only
  • Wheel has a 13" diameter and is 8" wide
  • Specially designed for vehicles up to 2500 lbs.
  • Has a 4x4.25 in. bolt pattern and has a 2" backspace
  • The standard beadlock ring color is matched to the wheel color

Key Specs

Bolt Pattern4 on 4.25"
Wheel Diameter13 Inch
Wheel Material TypeSteel
Width8"
Wheel Bolt Pattern (in.)4x4.25 in.

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

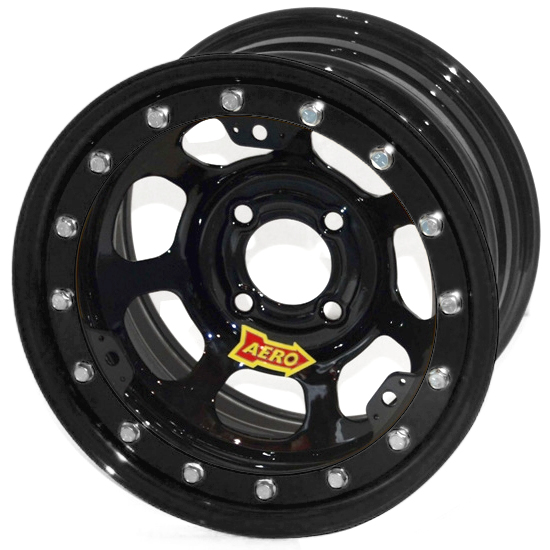

Aero 33-184220 Details

Aero Race Wheels 33 Series steel wheels are designed for dirt oval track use only. The CNC roll-formed 33 Series wheels have very low run-out beadlocks, using 16 zinc plated flange bolts. They feature a 7-hole D-window center disc made of HSLA material and include a mudcover installation kit.  Mudcover tabs are incorporated into the inner ring to eliminate the need for welding.

  • Recommended for dirt use only
  • Designed for vehicles up to 2500 lbs.
  • Must use 1" O.D. lug nuts with 45 degree taper
  • Standard beadlock ring color is matched to the wheel color

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.

Aero 33-184220 Specifications

KEY SPECS
MFG. Part #33-184220
BrandAero
Bolt Pattern4 on 4.25"
Wheel Diameter13 Inch
Wheel Material TypeSteel
Width8"
Wheel Bolt Pattern (in.)4x4.25 in.
Wheel Bolt Pattern (mm)4x107.95 mm
Wheel Backspace2"
Wheel Offset-64 mm
Wheel Backspace Range2.000" - 2.499"
FinishPowder Coated
ColorBlack
Beadlock IncludedYes
GENERAL
Beadlock FunctionalYes
DOT-ApprovedNo
Diameter13"
Weight21 lbs.
Sold in QuantityEach
NotesBeadlock ring color matched to wheel color.
Valve Stem IncludedNo
Lug Nut Seat Style45 Degree Conical
Center Cap IncludedNo
BeadlockYes
Lug Nuts IncludedNo
Material TypeSteel
