Aero 33-184230 33 Series 13x8 Wheel, Lite, 4x4.25 BP, 3 Inch BS
Aero 33-184230 33 Series 13x8 Wheel, Lite, 4x4.25 BP, 3 Inch BS
13 Inch Wheel Diameter, Steel, 8" Width, 4x4.25 in. Wheel Bolt Pattern (in.), Powder Coated
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Aero 33-184230 33 Series 13x8 Wheel, Lite, 4x4.25 BP, 3 Inch BS
X
Part # 25833184230
$149.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Wheel Diameter:
13 Inch
Material Type:
Steel
Width:
8"
Wheel Bolt Pattern (in.):
4x4.25 in.
Wheel Bolt Pattern (mm):
4x108 mm
Wheel Backspace Range:
3.000" - 3.499"
Wheel Backspace:
3"
Wheel Offset:
-38 mm
Finish:
Powder Coated
Color:
Black
Beadlock Functional:
Yes
Beadlock Included:
Yes
Diameter:
13"
Weight:
21 lbs.
MFG. Part #:
33-184230
Sold in Quantity:
Each
Notes:
Beadlock ring color matched to wheel color.
Beadlock:
Yes
Bolt Pattern:
4 on 4.25"
Info

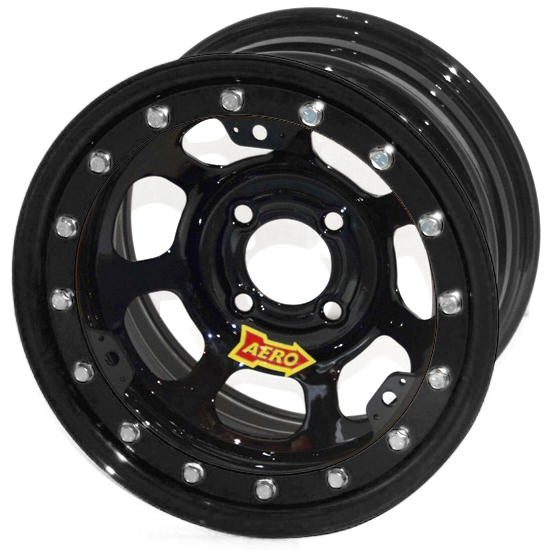

Aero Race Wheels 33 Series steel wheels are designed for dirt oval track use only. The CNC roll-formed 33 Series wheels have very low run-out beadlocks, using 16 zinc plated flange bolts. They feature a 7-hole D-window center disc made of HSLA material and include a mudcover installation kit. Mudcover tabs are incorporated into the inner ring to eliminate the need for welding.
- Recommended for dirt use only
- Designed for vehicles up to 2500 lbs.
- Must use 1" O.D. lug nuts with 45 degree taper
- Standard beadlock ring color is matched to the wheel color
Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.
Notes
For off road use only. The following must be considered when using Aero wheels for on highway/street use when the wheel/tire assembly is being balanced. Aero wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
