Key Specs
| MFG. Part # | 30-184535 |
| Wheel Diameter | 13 Inch |
| Width | 8" |
| Wheel Bolt Pattern (in.) | 4x4.5 in. |
| Wheel Bolt Pattern (mm) | 4x114.3 mm |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAero 30-184535 Details
Aero 30-184535 Details

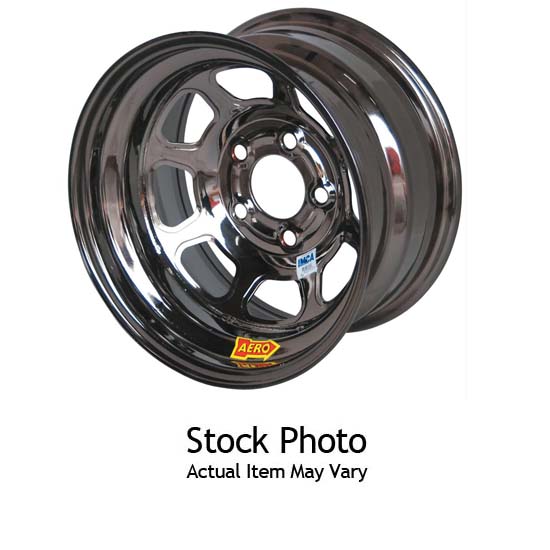

Aero Race Wheels 30 Series steel wheels are designed for asphalt or dirt oval track use. The roll-formed 30 Series wheels have low run-out with knife-edged bead humps. They feature a 7-hole D-window center disc made of HSLA material with a new torque ring design.
- Can be used for both dirt and asphalt
- Designed for vehicles up to 2500 lbs.
- Must use 1" O.D. lug nuts with 45 degree taper
- All 30 Series have safety bead humps
Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.
Aero 30-184535 Specifications
Aero 30-184535 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 30-184535 |
| Brand | Aero |
| Wheel Diameter | 13 Inch |
| Width | 8" |
| Wheel Bolt Pattern (in.) | 4x4.5 in. |
| Wheel Bolt Pattern (mm) | 4x114.3 mm |
| Wheel Backspace | 3.5" |
| Wheel Material Type | Steel |
| Wheel Offset | -25 mm |
| Wheel Backspace Range | 3.500" - 3.999" |
| Finish | Powder Coated |
| Color | Black |
| Beadlock Included | No |
| Material Type | Steel |
| Bolt Pattern | 4 on 4.5" |
| Diameter | 13" |
| GENERAL | |
| Sold in Quantity | Each |
| DOT-Approved | No |
| Position | Front and Rear |
| Weight | 16 lbs. |
| Valve Stem Included | No |
| Lug Nut Seat Style | 45 Degree Conical |
| Center Cap Included | No |
| Lug Nuts Included | No |
| Beadlock | No |
