Key Specs
| Wheel Diameter | 13 Inch |
| Width | 8" |
| Wheel Bolt Pattern (in.) | 4x4 in. |
| Wheel Bolt Pattern (mm) | 4x101.6 mm |
| Wheel Backspace | 3" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAero 30-184030 Details
Aero 30-184030 Details

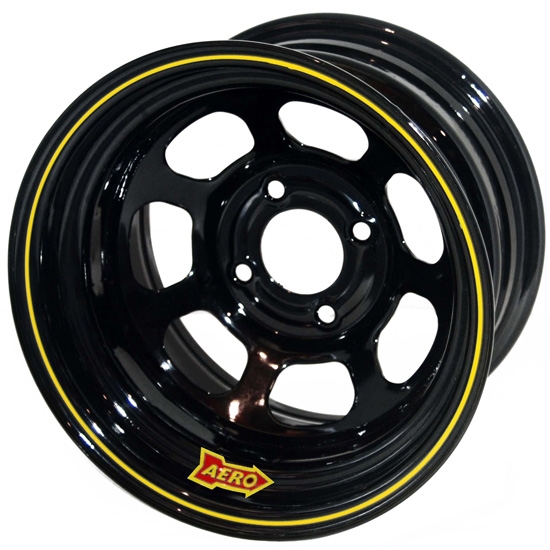

Aero Race Wheels 30 Series steel wheels are designed for asphalt or dirt oval track use. The roll-formed 30 Series wheels have low run-out with knife-edged bead humps. They feature a 7-hole D-window center disc made of HSLA material with a new torque ring design.
- Can be used for both dirt and asphalt
- Designed for vehicles up to 2500 lbs.
- Must use 1" O.D. lug nuts with 45 degree taper

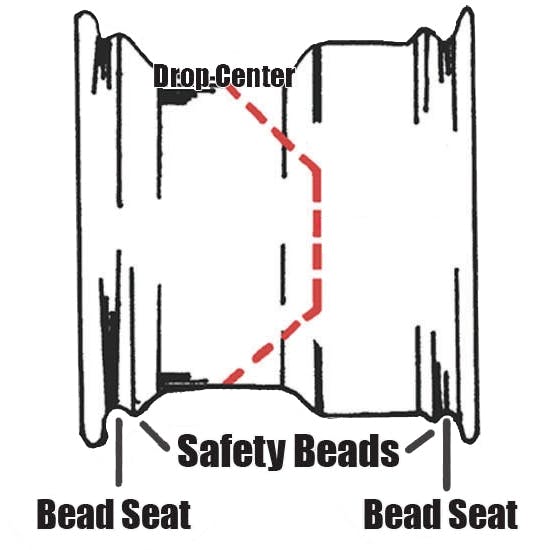

- All 30 Series have safety bead humps
Note: The 4-on-4" bolt pattern will work on 4 on 100 mm if not using 5/8" studs.
Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.Aero 30-184030 Specifications
Aero 30-184030 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 30-184030 |
| Brand | Aero |
| Wheel Diameter | 13 Inch |
| Width | 8" |
| Wheel Bolt Pattern (in.) | 4x4 in. |
| Wheel Bolt Pattern (mm) | 4x101.6 mm |
| Wheel Backspace | 3" |
| Wheel Material Type | Steel |
| Wheel Offset | -38 mm |
| Wheel Backspace Range | 3.000" - 3.499" |
| Finish | Powder Coated |
| Color | Black |
| Beadlock Included | No |
| Material Type | Steel |
| Bolt Pattern | 4 on 4" |
| Diameter | 13" |
| GENERAL | |
| DOT-Approved | No |
| Position | Front and Rear |
| Weight | 17 lbs. |
| Sold in Quantity | Each |
| Valve Stem Included | No |
| Lug Nut Seat Style | 45 Degree Conical |
| Center Cap Included | No |
| Lug Nuts Included | No |
| Beadlock | No |
