Add to Cart
$89.99

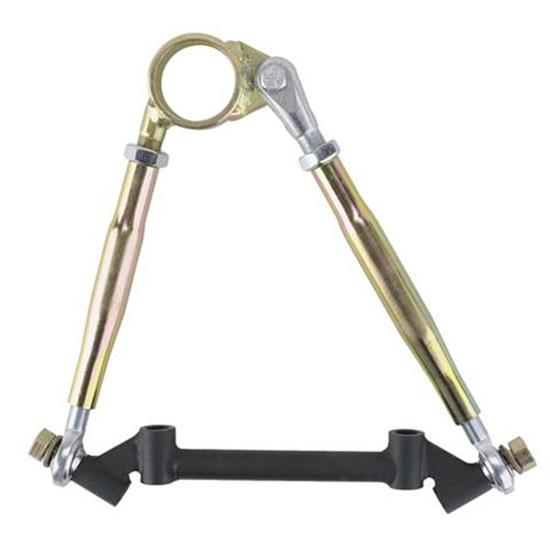

Adjustable A-Arm with Cross Shaft, Offset Type, 9-1/4 Inch
Adjustable A-Arm with Cross Shaft, Offset Type, 9-1/4 Inch

Adjustable A-Arm with Cross Shaft, Offset Type, 9-1/4 Inch

Tubular Control Arm Style, 9.25" Mount Center to Ball Joint Center, Steel

1 Review | 0 Answered Questions
In Stock
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
Adjustable A-Arm with Cross Shaft, Offset Type, 9-1/4 Inch
Adjustable A-Arm with Cross Shaft, Offset Type, 9-1/4 Inch
Adjustable A-Arm with Cross Shaft, Offset Type, 9-1/4 Inch
X
Adjustable A-Arm with Cross Shaft, Offset Type, 9-1/4 Inch
Zoomed In Image
Part # 91034383
$89.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • This adjustable strut type A-arm with cross shaft allows easy adjustment of caster/camber
  • IMCA approved steel cross shaft
  • Uses a threaded ball joint
  • These arms mount on a 6" center
  • Zinc-plated for rust and corrosion prevention

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Control Arm Style:
Tubular
Mount Center to Ball Joint Center:
9.25"
Mounting Bolt Center to Center:
6"
Material Type:
Steel
Cross Pin Material:
Steel
Inside Diameter:
1.83"
Ball Joint Type:
Screw-in
Tube O.D.:
.76"
Hole Diameter:
.56"
Hardware Included:
Yes
Finish:
Zinc Plated
MFG. Part #:
91034383
Sold in Quantity:
Kit

Info

Adjustable offset type A-arms with cross shaft allows for easy adjustment of caster/camber, has an IMCA approved cross shaft, and uses a threaded ball joint. For both right hand and left hand side.

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Upper Ball Joint Collar Ring, Speedway/Jet/DW9
    Qty x 1
  • Speedway Main Cross Shaft for Adjustable Control Arm
    Qty x 1
  • Speedway Swedged Tube For Adjustable A-Arm, 6 Inch Long
    Qty x 1
  • Speedway Swedged Tube For Adjustable A-Arm, 6.5 Inch Long
    Qty x 1
  • Steel Clevis, 5/8-18 RH Thread, 3/8 Inch Slot, Zinc Plated
    Qty x 1
  • Standard Steel Heim Joint Rod Ends, 1/2-20 LH Male
    Qty x 2
  • Steel Jam Nut, 5/8-18 RH
    Qty x 2
