AFCO Tri Reverse Mount Master Cylinder Pedal Assembly, 5.1:1

#91029987

AFCO Tri Reverse Mount Master Cylinder Pedal Assembly, 5.1:1

Name: AFCO Tri Reverse Mount Master Cylinder Pedal Assembly, 5.1:1
Brand: AFCO
SKU: 91029987
Price: 483.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

3 Questions

Type:

Dual Pedal Kit / 5.1:1 Ratio

Dual Pedal Kit / 6.25:1 Ratio Dual Pedal Kit / 6.2:1 RatioSingle Pedal Kit / 6.25:1 Ratio

$483.99

/kit

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Firewall Position, Disc Brake System Type, Balance Bar

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	91029987
Brand	AFCO
Brake System Type	Disc
Reservoir Type	Integral

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 91029987 Details

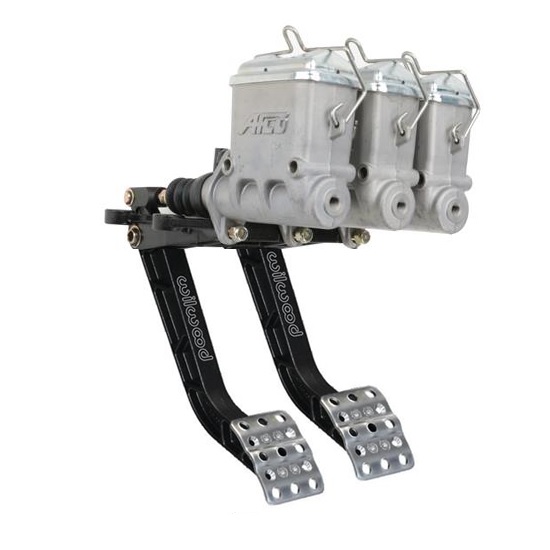

This Wilwood pedal / AFCO master cylinder assembly combines the brake and clutch pedals together in one unit and positions the master cylinders inside the firewall and away from engine heat. It features all aluminum frame and arm construction with steel pivots, mounting studs, and anti-skid pedal pads. Wilwoods clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments.

5.1:1 pedal ratio
External return spring maintains positive pedal feel, prolongs pad life
Polished smooth bores
One-piece alumiunum construction
Each master cylinder has a single 1/8" NPT outlet
Specify m/c bore sizes needed (3/4", 7/8", 1")

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

Item Details

Specify bore sizes in the Comments box of your Shopping Cart at Checkout.
(3/4", 7/8", 1")

Specs

Pedal Ratio: 5.1:1
Pedal Length: 10.02"
Mount Length: 10.35"

Guides & Documents

Effects of Master Cylinder Bore Size on Your Brake System

Brake Pedal Assemblies Installation Instructions (83534013835)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

AFCO 91029987 Specifications

KEY SPECS
MFG. Part #	91029987
Brand	AFCO
Brake System Type	Disc
Reservoir Type	Integral

GENERAL
Position	Firewall
Master Cylinder Mount Type	Reverse
Pedals Included	Clutch/Brake
Master Cylinder Count	3
Outlet Count	Single
Outlet Fitting	1/8"-27 NPT
Master Cylinder Material	Aluminum
Brake Booster Included	No
Balance Bar	Yes
Sold in Quantity	Kit
Notes	Includes pedals and three master cylinders.

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Good product

5.0

6 years ago

Dixie

Missouri

Verified

Very sturdy and no issue with fitment, cleans up the engine bay quite nicely.

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

3 Questions • 3 Answers

Sort Questions

i am running a dirt modified, with a falcon transmission, is there a specific master cylinder to use for the brakes and clutch?

by dirt cracker

• 4 years ago

1 answer

View Answer

Master cylinders included? Does this pedal assembly include the three master cylinders?

by 87norotor

• 11 years ago

1 answer

View Answer

Length of unit. what its the length or depth of the assembly? From the front of the master cylinder to the pivot point. Trying to make it fit in between a dash and a firewall. Distance from dash to firewall is 12 inches.

by MikeO

• 13 years ago

1 answer

View Answer

3 of 3 questions shown
