#106100D
AFCO Street Rod Coilover Shock Kit, Black, 200 Lb
- Best suited for lightweight street rods and hot rods, such as T-buckets and early Ford Coupe/Roadster builds
- Helps to reduce unnecessary suspension weight and are compact in size to fit in even the smallest of car builds
- Coilovers feature a smooth, small-body steel gas monotube shock, black anodized coilover adjuster sleeve, spring hardware, and a beautifully chrome-plated 10-inch coilover spring
$156.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Universal Position, 200 lbs. Spring Rate
- Best suited for lightweight street rods and hot rods, such as T-buckets and early Ford Coupe/Roadster builds
- Helps to reduce unnecessary suspension weight and are compact in size to fit in even the smallest of car builds
- Coilovers feature a smooth, small-body steel gas monotube shock, black anodized coilover adjuster sleeve, spring hardware, and a beautifully chrome-plated 10-inch coilover spring
- Both the upper and lower shock mount have a bushed eyelet
- Compressed length measures 9.75" and has an extended length of 14.63"
Comes as a Kit
View Kit Components
Key Specs
| Position | Universal |
| Spring Rate | 200 lbs. |
| Mounted Length | 12.38" |
| Shock Adjustability | Non-Adjustable |
| Shock Type | Mono Tube |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 106100D Details
AFCO 106100D Details
AFCO Street Rod Series coilovers provide a comfortable ride, outstanding build quality, packaged together at an amazing value for your traditional hot rod build! Coilovers are a great upgrade for any project - providing a huge performance increase in ride quality and near-endless adjustment in ride height - to dial in that perfect stance! This coilover shock kit is best suited for lightweight street rods and hot rods, such as T-buckets and early Ford Coupe/Roadster builds. Coilover kits help to reduce unnecessary suspension weight and are compact in size to fit in even the smallest of car builds.
AFCO Street Rod Series Coilovers feature a smooth, small-body steel gas monotube shock, black anodized coilover adjuster sleeve, spring hardware, and a beautifully chrome-plated 10-inch coilover spring. All the necessary hardware to assemble your coilover system is included. One kit will cover a single corner of your build.
Each kit includes:
- (1) Black 1.63" steel body radial tuned gas monotube shock
- (1) Chrome 10" spring
- (1) Black anodized aluminum spring mounting kit
- Mounted Length: 12-3/8"
- Compressed Length: 9-3/4"
- Extended Length: 14-5/8"
- Shock accepts 1/2" or 5/8" bolt for top bushing and 5/8" bolt in the bottom bushing
- 1-3/8" mounting bushing width

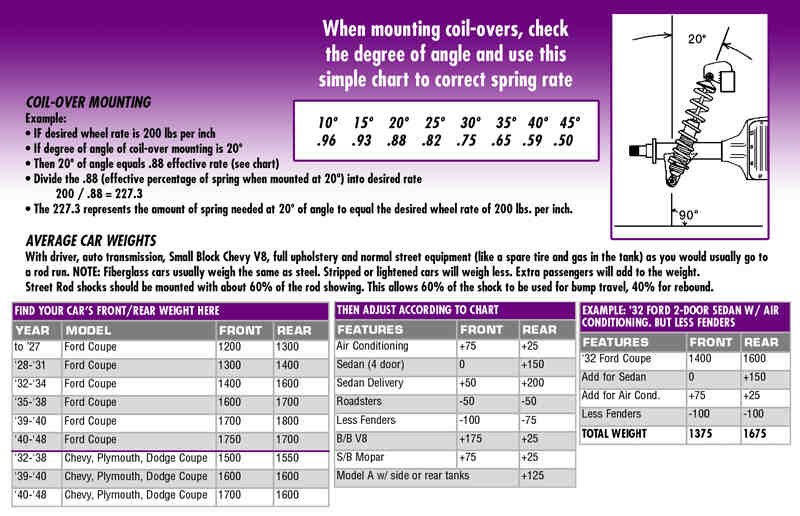

Not sure what spring rate you need? - Check out our Spring Rate Chart to help you dial in the perfect setup.
Charts
Coil-Over Mounting Guide (GIF)
Guides & Documents
Warranty Information
AFCO 106100D Specifications
AFCO 106100D Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 106100D |
| Brand | AFCO |
| Position | Universal |
| Spring Rate | 200 lbs. |
| Mounted Length | 12.38" |
| Shock Adjustability | Non-Adjustable |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Stroke | 5.00 |
| Upper Shock Mount | Bushed Eyelet |
| Lower Shock Mount | Bushed Eyelet |
| Height Adjustable | Yes |
| Finish | Anodized |
| GENERAL | |
| Shock Body Size | Small Body |
| Shock Body Type | Smooth |
| Compressed Length Range | 9.00" to 9.99" |
| Compressed Length | 9.75" |
| Extended Length Range | 14.00" to 14.99" |
| Extended Length | 14.63" |
| Spring Length | 10 Inch |
| Mounted Length Range | 12 1/8" - 12 5/8" |
| Coilover Kit Included | Yes |
| Coilover Springs Included | Yes |
| Body Diameter | 1.63" |
| Sold in Quantity | Kit |
| Adjustable | No |
| Spring Finish | chrome |
