#106100A
$164.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Universal Fit, Universal Position, 115 lbs. Spring Rate
Comes as a Kit
View Kit Components
| Position | Universal |
| Spring Rate | 115 lbs. |
| Mounted Length | 12.38" |
| Shock Adjustability | Non-Adjustable |
| Shock Type | Mono Tube |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO Street Rod Series coilovers provide a comfortable ride, outstanding build quality, packaged together at an amazing value for your traditional hot rod build! Coilovers are a great upgrade for any project - providing a huge performance increase in ride quality and near-endless adjustment in ride height - to dial in that perfect stance! This coilover shock kit is best suited for lightweight street rods and hot rods, such as T-buckets and early Ford Coupe/Roadster builds. Coilover kits help to reduce unnecessary suspension weight and are compact in size to fit in even the smallest of car builds.
AFCO Street Rod Series Coilovers feature a smooth, small-body steel gas monotube shock, black anodized coilover adjuster sleeve, spring hardware, and a beautifully chrome-plated 10-inch coilover spring. All the necessary hardware to assemble your coilover system is included. One kit will cover a single corner of your build.
Each kit includes:

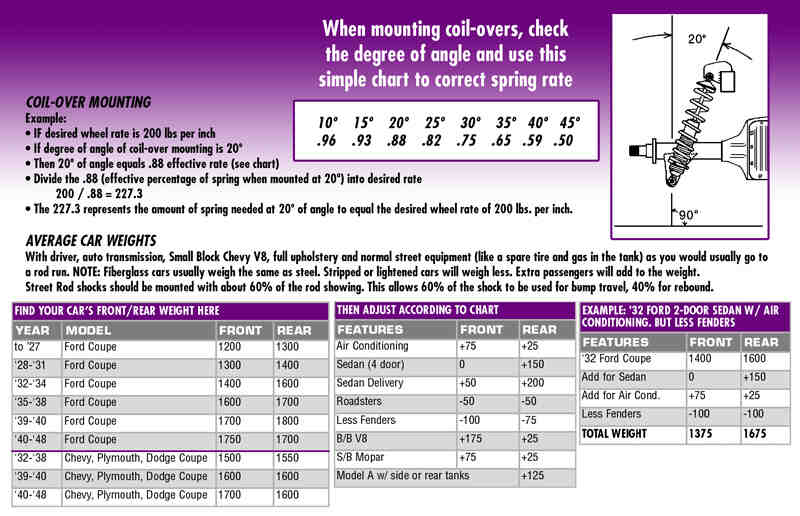

Not sure what spring rate you need? - Check out ourSpring Rate Chartto help you dial in the perfect setup.
Charts
Coil-Over Mounting Guide (GIF)
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 106100A |
| Brand | AFCO |
| Position | Universal |
| Spring Rate | 115 lbs. |
| Mounted Length | 12.38" |
| Shock Adjustability | Non-Adjustable |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Stroke | 5.00 |
| Upper Shock Mount | Bushed Eyelet |
| Lower Shock Mount | Bushed Eyelet |
| Height Adjustable | Yes |
| Finish | Anodized |
| GENERAL | |
| Shock Body Size | Small Body |
| Shock Body Type | Smooth |
| Compressed Length Range | 9.00" to 9.99" |
| Compressed Length | 9.75" |
| Extended Length Range | 14.00" to 14.99" |
| Extended Length | 14.63" |
| Spring Length | 10 Inch |
| Mounted Length Range | 12 1/8" - 12 5/8" |
| Coilover Kit Included | Yes |
| Coilover Springs Included | Yes |
| Bushing Length | 1.38" |
| Bushing Material | Rubber |
| Body Diameter | 1.63" |
| Sold in Quantity | Kit |
| Adjustable | No |
| Spring Finish | chrome |
4
1 Review
4
1 reviews
5
0
4
1
3
0
2
0
1
0
Filter by Ratings
Nice quality but wouldn't buy again.
4.0
6 years ago
Tom Youtube: TrianN'Error
Nh
Verified
It's a fine coilover but the more I thought about it after buying I would have been smarter to spend a bit more on an adjustable setup. There's nothing wrong with this but the value for the money isn't great IMO. I'll most likely need to upgrade these down the road (pun intended) and I would have saved a lot of money by spending a little more doing it right the first time.
Would Not Recommend
Showing 1 of 1 reviews
