AFCO 24275CR 14 Inch Extreme Chrome Coil Over Spring - 275 Rate
- Made using industry exclusive 360° polished wire
- Spring has a 14" free height and a 275 lb. spring rate
- Inside diameter measures 2.63" and they are triple plated with copper, nickel, and chrome
$71.99
each
In Stock
$1,139.99
Save $1,068.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 200 - 299 lbs. Spring Rate Range, Steel
- Made using industry exclusive 360° polished wire
- Spring has a 14" free height and a 275 lb. spring rate
- Inside diameter measures 2.63" and they are triple plated with copper, nickel, and chrome
- Both ends are squared to ensure a proper fit
- All AFCOILS® carry a lifetime warranty to remain within 2% of the original nominal free height
Key Specs
| Spring Rate Range | 200 - 299 lbs. |
| Spring Rate | 275 lbs. |
| Free Height | 14" |
| Inside Diameter | 2.63" |
| Material Type | Steel |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 24275CR Details
AFCO 24275CR Details
Whether you are building a purpose-built drag strip machine or a beautiful show car, Extreme Chrome coilover springs will provide the strength, durability and show stopping good looks you desire.
- Industry exclusive 360° polished wire
- High quality REAL chrome finish
- Looks great from any angle - not just on the outside edge
- 2-5/8" inside diameter
- Chrome Silicon Wire (not chrome vanadium) is used in every spring
- Higher tensile strength, longer life
- Cold-wound & heat-treated twice during manufacturing to withstand the most abusive conditions
- Shot-peened
All AFCOILS® carry a lifetime warranty to remain within 2% of the original nominal free height.

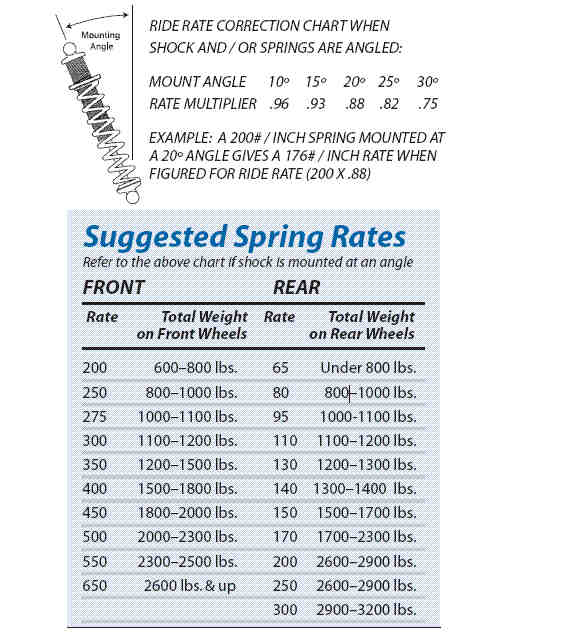

Charts
Warranty Information
Click for details
Warranty Information
Click for details
AFCOILS® springs are manufactured using the finest spring material available. They are designed for extended life and consistent performance. They are guaranteed to do the job for which they are designed for as long as they are owned by the original purchaser.
AFCO will replace any AFCOILS® spring that ever exceeds the maximum allowable 2% loss of free height from original nominal specification. One way freight is included.
- Guarantee applies to original retail purchaser only.
- Damaged springs not covered by warranty.
- Spring must be returned to AFCO freight prepaid along with a copy of the original invoice.
- No other warranty, either expressed or implied, applies to AFCOILS® springs.
AFCO 24275CR Specifications
AFCO 24275CR Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 24275CR |
| Brand | AFCO |
| Spring Rate Range | 200 - 299 lbs. |
| Spring Rate | 275 lbs. |
| Free Height | 14" |
| Inside Diameter | 2.63" |
| Material Type | Steel |
| Finish | Chrome |
| Color | Natural |
| GENERAL | |
| Progressive Rate Spring | No |
| Coil Spring End (A) | Square |
| Coil Spring End (B) | Square |
| Sold in Quantity | Each |
