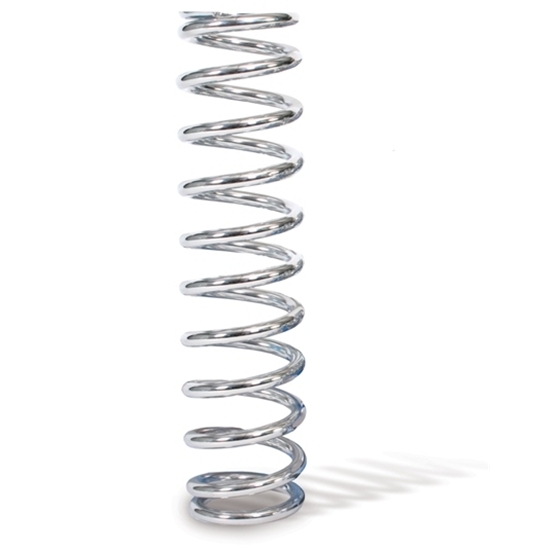

AFCO 24175CR 14 Inch Extreme Chrome Coil Over Spring - 175 Rate

#10624175CR

AFCO 24175CR 14 Inch Extreme Chrome Coil Over Spring - 175 Rate

Name: AFCO 24175CR 14 Inch Extreme Chrome Coil Over Spring - 175 Rate
Brand: AFCO
SKU: 10624175CR
Price: 73.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

Made using industry exclusive 360° polished wire
These coil over springs are engineered to provide the strength, durability and show stopping good looks you desire
Has a 2-5/8" inside diameter and a 175 lb. spring rate

Spring Rate:

175 lb

80 lb 150 lb 125 lb 110 lb 100 lb275 lb 300 lb 200 lb 225 lb 250 lb 185 lb

$73.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Universal Position, 175 lbs. Spring Rate

Made using industry exclusive 360° polished wire
These coil over springs are engineered to provide the strength, durability and show stopping good looks you desire
Has a 2-5/8" inside diameter and a 175 lb. spring rate
Both ends are squared to ensure a proper fit
Made from heavy duty steel with a beautiful chrome finish

See more details

Key Specs

MFG. Part #	24175CR
Position	Universal
Spring Rate	175 lbs.
Free Height	14"
Outside Diameter	2.75"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 24175CR Details

Whether you are building a purpose-built drag strip machine or a beautiful show car, Extreme Chrome coilover springs will provide the strength, durability and show stopping good looks you desire.

Industry exclusive 360° polished wire
High quality REAL chrome finish
Looks great from any angle - not just on the outside edge
2-5/8" inside diameter
Chrome Silicon Wire (not chrome vanadium) is used in every spring
Higher tensile strength, longer life
Cold-wound & heat-treated twice during manufacturing to withstand the most abusive conditions
Shot-peened

All AFCOILS® carry a lifetime warranty to remain within 2% of the original nominal free height.

Charts

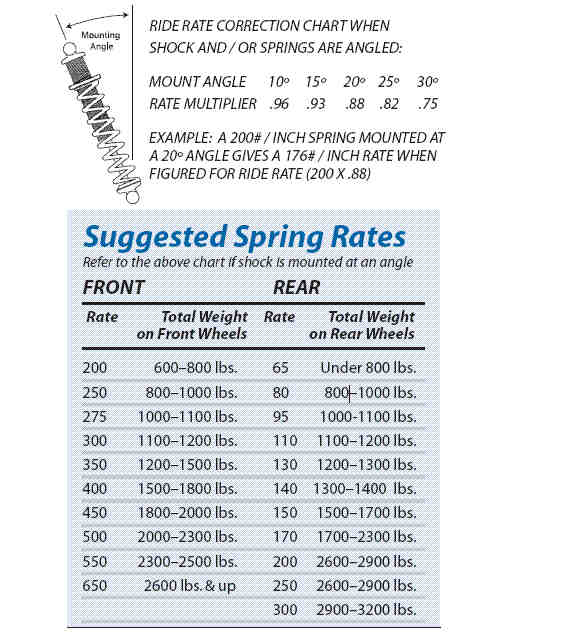

AFCOILS® Spring Rate Guide (GIF)

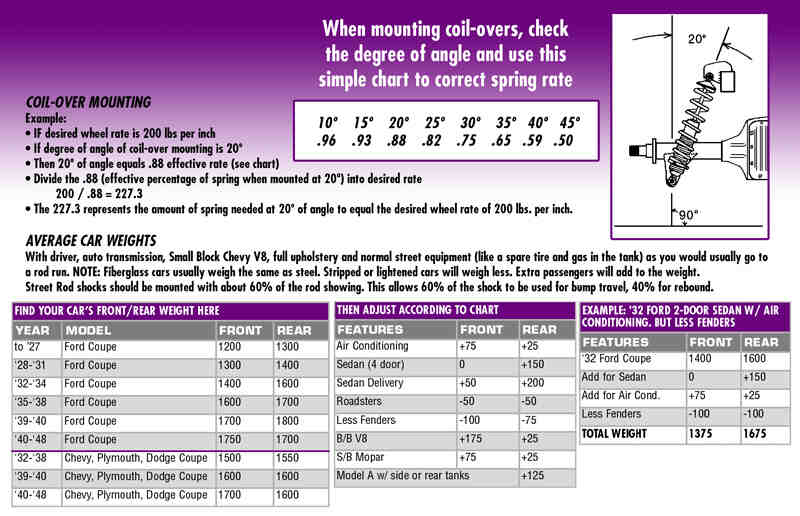

Coil-Over Mounting Guide (GIF)

Guides & Documents

Coil Springs Technical Information (10624175CR)

Warranty Information

AFCOILS® springs are manufactured using the finest spring material available. They are designed for extended life and consistent performance. They are guaranteed to do the job for which they are designed for as long as they are owned by the original purchaser.

AFCO will replace any AFCOILS® spring that ever exceeds the maximum allowable 2% loss of free height from original nominal specification. One way freight is included.

Guarantee applies to original retail purchaser only.
Damaged springs not covered by warranty.
Spring must be returned to AFCO freight prepaid along with a copy of the original invoice.
No other warranty, either expressed or implied, applies to AFCOILS® springs.

(Warranty not valid without invoice.) Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 24175CR Specifications

KEY SPECS
MFG. Part #	24175CR
Brand	AFCO
Position	Universal
Spring Rate	175 lbs.
Free Height	14"
Outside Diameter	2.75"
Inside Diameter	2.63"
Material Type	Steel
Finish	Chrome
Color	Natural
Spring Rate Range	100 - 199 lbs.

GENERAL
Sold in Quantity	Each
Progressive Rate Spring	No
Coil Spring End (A)	Square
Coil Spring End (B)	Square
