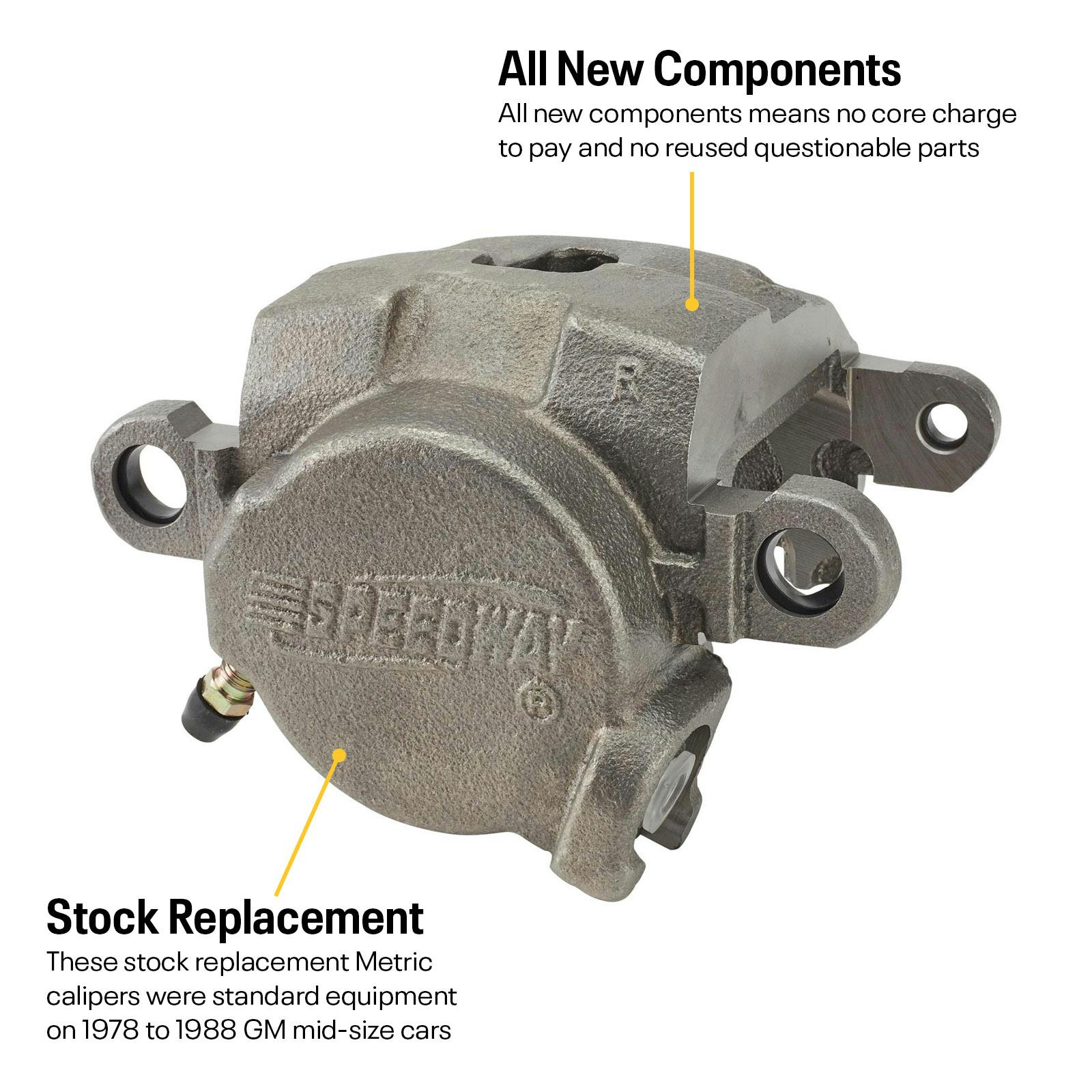

1978-88 GM Metric G-Body Brake Calipers, IMCA Approved, 7/16-20

• Uses common 7/16-20 SAE thread fluid inlet for larger brake hose compatibility
• Caliper features low-drag piston seal and piston dust seal for long life/street use
• Available as left or right side casting, only buy what you need for service/repairs
• Uses commonly found FMSI D154 reference number disc brake pads
• No core charge required and no need to ship your old calipers back
• Designed for 1.00-inch thick disc brake rotors (can fit .810-inch rotor with pad spacer)
• Uses 5-1/2-inch bolt spacing mounting pattern
• Brake pads, brake hoses, and caliper slide bolts sold separately

Stop Effectively with Our IMCA Approved GM Metric Disc Brake Calipers

Spec class racing removes a lot of the “wallet racing” by equalizing the racing equipment and focusing on the racer’s abilities. Having rules that specify specific parts, weights, dimensions, and more means everyone, theoretically, is running the same car with the same performance, making the race more about driver skill and race strategy. It is a great, cost effective, way to go racing while being competitive and having some fun.

One such spec item the IMCA mandates for many of their racing classes, including Modifieds, Hobby Stock, and others, is the use of the ’78-’88 GM Metric caliper. Having the same caliper body and piston size as an approved IMCA part means everyone has the same braking system capability. The issue has been finding a good GM Metric caliper though. Parts store remans are iffy at best, often being remanufactured with substandard parts, and requiring core charges or turning in your old calipers. We opted to craft a brand new reproduction steel brake caliper that meets all the class rules for IMCA approval but can also be used on the street with any aftermarket brake system that specs these GM Metric calipers for their brake kit.

Brand New Casting with Low Drag Piston Seal and Street Friendly Dust Seals

When we designed our IMCA approved GM Metric disc brake caliper we realized the majority of the sales would come from racers, but we also wanted to ensure that this disc brake caliper could be used in road going applications, as this brake caliper is very popular in rear disc brake conversions and for custom installations using caliper mounting brackets, either application specific or universal clamp-on or weld on options.

To that end, we fitted the 2-3/8-inch diameter piston with a low drag piston seal that retracts the piston slightly, pulling the brake pads away from the rotor for better fuel economy. Furthermore, standard piston dust seals are included in our brake caliper casting for extremely low maintenance requirements. These disc brake pistons are designed to fit best with 1-inch wide disc brake rotors but will work with .810-inch rotors as well when fitted with our disc brake pad spacer.

When designing these new Metric calipers, we did change the fluid port to the much more common 7/16-20 thread. This opens up your brake hose and banjo bolt/fitting options immensely for custom applications. Our 16-inch braided Teflon brake hose kit is a great option that will work for most applications, but we offer several different brake hose kits in various lengths for your project needs. We do not include brake caliper slide bolts and highly recommend our one-piece caliper slide bolt (two per caliper) that does not use the factory slide bolt bushings in the caliper. These GM Metric calipers use readily available replacement or performance disc brake pads found under the FMSI D154 pad shape reference number.

Note: For all OEM applications listed below the brake hoses and banjo bolt will need changed to 7/16"-20

• 1982-1992 Chevy Camaro
• 1978-1988 Chevy Monte Carlo
• 1978-1983 Chevy Malibu
• 1978-1987 Chevy El Camino
• 1982-2003 Chevy S10 Pickup RWD
• 1983-1987 Chevy S10 Blazer RWD
• 1978-1987 GMC Caballero
• 1983-1997 GMC S15 Jimmy RWD
• 1982-1990 GMC S15 Pickup RWD
• 1991-2003 GMC Sonoma RWD
• 1978-1988 Buick Regal
• 1978-1988 Buick Grand National
• 1978-1988 Oldsmobile Cutlass
• 1978-1987 Pontiac Grand Prix
• 1978-1980 Grand Am
• 1978-1981 Grand Le Mans
• 1982-1992 Pontiac Firebird
• 1978-1981 Pontiac Le Mans
