DOT Braided Stainless Brake Hoses, 69-77 GM, 7/16-20
Universal Fit, -3 AN Brake Hose Size, 16" Brake Hose Length
- This brake line kit is DOT approved which allows it to be used on street driven vehicles
- Stainless steel braid over Teflon® hose allows the hose to maintain flexibility while being abrasion resistant
- 3/8"-24 IFF frame adapter fittings are included to allow for easy connection of 3/16" steel brake lines
- Frame tabs can be bolted or welded on and feature a spring clip for retaining the frame adapter
- 7/16"-20 thread banjo bolts and crush washers are included to create a leak free seal

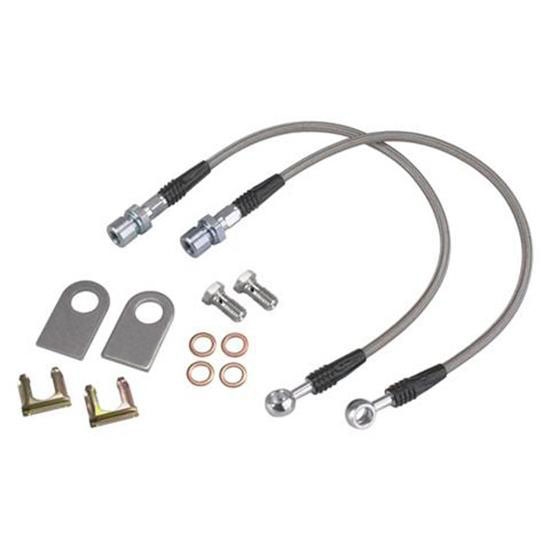

DOT approved brake line kits include two stainless steel -3 AN brake lines with the banjo fitting installed, banjo bolts and washers, 3/8"-24 IFF frame adapter fittings and frame tabs with clips. Includes -3 AN fittings and adapters to connect them to 3/16" brake line using a 3/8"-24 IFM flare nut.
- Stainless steel braid over Teflon® hose
- Reduces volumetric expansion of brake lines
- Reduces brake fade
- Less susceptible to debris than rubber line
Item Details1969-77 GM with 7/16"-20 caliper threads
- If using 1/4" brake line with a 7/16"-24 flare nut on your chassis, use adapter fitting # 9103183-3/8 which has a 3/8"-24 IF male and a 7/16"-24 IF female configuration.
- Brake System Builder Tip (GIF)
NotesDOT approved. Includes 7/16"-20 banjo bolts/washers, 3/8"-24 IFF frame adapter fittings, and frame tabs with clips.
