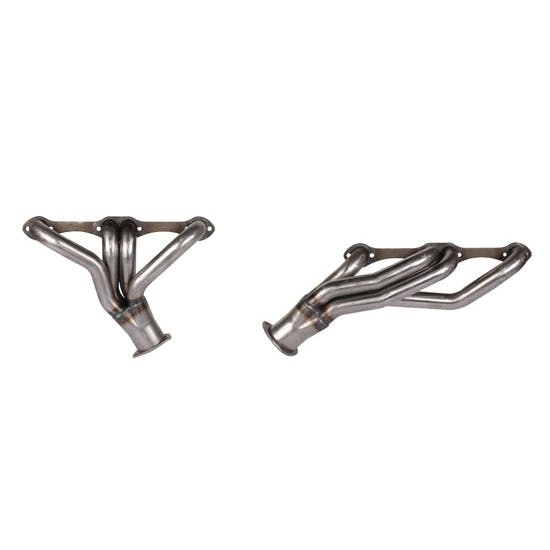

#9300109
1969-87 GM A/F/G Body SBC Shorty Headers, Manual Trans, Raw
2 Reviews
|
12 Questions
- Shorty design that gives maximum ground clearance and works with floor shift manual transmission only
- 1 5/8" primary tubes 3" collectors and are for S/B Chevy without angle plugs
See More
$229.99
set
In Stock
$236.00
Save $6.01
Garage Sale alternatives: from $204.99
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
267, 283, 302, 305, 307, 327, 350, 400, Steel, Natural
- Shorty design that gives maximum ground clearance and works with floor shift manual transmission only
- 1 5/8" primary tubes 3" collectors and are for S/B Chevy without angle plugs
See more details
Key Specs
Header Tube Type | Shorty |
Exhaust Port Shape | Round |
Flange Style | Standard |
Primary Tube Diameter | 1-5/8" |
Material Type | Steel |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9300109 Details
Speedway Motors 9300109 Details
These S/B Chevy headers are a shorty design that give maximum ground clearance and work with floor-shift manual transmissions only. Features 1-5/8" primary tubes and 3" collectors. Built with surface machined thick steel flanges for a great seal and mandrel bent mild steel tubing.
Headers come with installation hardware, collector reducers, gaskets and instructions.
- 1967-81 Camaro/Firebird
- 1968-87 Chevelle, Malibu and El Camino
- Must use non-shell style motor mounts
- Manual Transmissions Only
Charts
Header Dimensions Chart (JPEG)
Features
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Speedway Motors 9300109 Specifications
Speedway Motors 9300109 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 9300109 |
Brand | Speedway Motors |
Header Tube Type | Shorty |
Exhaust Port Shape | Round |
Flange Style | Standard |
Primary Tube Diameter | 1-5/8" |
Material Type | Steel |
Color | Natural |
Weld-Up | No |
Collector Diameter | 3 Inch |
Finish | Raw |
Collector Attachment Type | 3-bolt flange |
Hardware Included | Yes |
Gasket(s) Included | Yes |
Collector Reducers Included | Yes |
Collector Reducer Exit Diameter | 2.5" |
GENERAL | |
Collector Length | 4" |
Flange Thickness | .31" |
Port Height | 1.68" |
Port Width | 1.37" |
Drivers Side Dimension A | 4.1" |
Drivers Side Dimension B | 13.63" |
Drivers Side Dimension C | 18.38" |
Passenger Side Dimension A | 5.88" |
Passenger Side Dimension B | 10.2" |
Passenger Side Dimension C | 25.63" |
Sold in Quantity | Pair |
