Product Summary

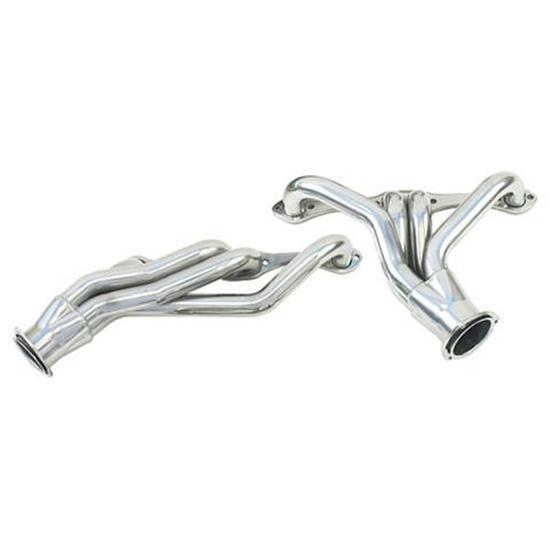

Chevy Small Block V8, Shorty Header Tube Type, Steel

  • Headers come with installation hardware, collector reducers, gaskets and instructions
  • 1967-81 Camaro/Firebird
  • 1968-87 Chevelle, Malibu and El Camino
  • Must use non-shell style motor mounts
  • Manual Transmissions Only

Key Specs

MFG. Part #9300109H
BrandSpeedway Motors
Header Tube TypeShorty
FinishCeramic Coated
Material TypeSteel

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

These S/B Chevy headers are a shorty design that give maximum ground clearance and work with floor-shift manual transmissions only. Features 1-5/8" primary tubes and 3" collectors. Built with surface machined thick steel flanges for a great seal and mandrel bent mild steel tubing.

Available with metallic ceramic coating. Unlike paint or chrome, metallic ceramic coating is easy to keep clean, resists rust and corrosion and will not discolor. Metallic ceramic coating also reduces underhood temperatures.

Headers come with installation hardware, collector reducers, gaskets and instructions.

  • 1967-81 Camaro/fFirebird
  • 1968-87 Chevelle, Malibu and El Camino
  • Must use non-shell style motor mounts
  • Manual Transmissions Only

(JPEG)

Item Details

AHC Coated

Charts

Warranties

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles

Guides & Documents

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #9300109H
BrandSpeedway Motors
Header Tube TypeShorty
FinishCeramic Coated
Material TypeSteel
GENERAL
Flange StyleStandard
Primary Tube Diameter1-5/8"
ColorSilver
Weld-UpNo
Exhaust Port ShapeRound
Collector Diameter3 Inch
Collector Length4"
Flange Thickness.31"
Port Height1.68"
Port Width1.37"
Drivers Side Dimension A4.10"
Drivers Side Dimension B13.63"
Drivers Side Dimension C18.38"
Passenger Side Dimension A5.88"
Passenger Side Dimension B10.20"
Passenger Side Dimension C25.63"
Hardware IncludedYes
Gasket(s) IncludedYes
Sold in QuantityPair
Collector Attachment Type3-bolt flange
Collector Reducers IncludedYes
Collector Reducer Exit Diameter2.5"
