1967-69 Camaro/1968-74 Nova Tubular Control Arm/Alignment Kit

• Strong tubular construction with durable gloss black powder coat protection
• Control arms feature greasable Delrin bushings and OEM-style ball joints preinstalled
• Revised spring pocket provides 1-1/2 to 2-inch drop in ride height with stock spring
• Control arms can be used with stock springs or with coilover kits
• Polyurethane bump stops are included for both upper and lower control arms
• Utilizes OEM sway bar end links and ball joints for easy servicing
• Upper control arms feature 4-degrees of positive caster via caster key inserts
• Cadmium plated forged cross shaft for strength with grease fittings
• Kit includes all necessary installation hardware and alignment shim kit
• Also fits 1967-1969 Pontiac Firebird models
• Lower control arm design requires disc brakes; drum backing plate interferes

Improve Your Camaro or Nova’s Handling and Looks with a Bolt-On Control Arm Upgrade

Your first gen Camaro/Firebird and third/fourth gen Nova utilize the same bolt-in front subframe assembly. This production piece uses traditional stamped steel upper and lower control arms fitted with a coil spring and a shock absorber for dampening. These pieces provided a fairly decent ride 50 plus years ago on bias-ply tires. However, today’s world is vastly different. We want our muscle cars to handle, fit big disc brakes, and wide sticky rubber. These stock stamped steel control arms can literally flex and fail under the cornering and braking forces applied to them, especially in a track environment. The last thing any enthusiast wants is a part failure that could potentially cause damage to their pride and joy (or worse, cause injuries). Updating your GM pony car with Speedway Motors’ beefy Camaro tubular control arms strengthens and enhances your muscle car’s ride while providing 1-1/2-inch to 2-inch drop in front ride height.

Stamped Versus Tubular, The Benefits of Our Control Arms Are Obvious

As we stated earlier, a stamped steel control arm invites lots of sloppiness into your suspension due to flexing and twisting. While a stamping is indeed stronger than a flat sheet of metal, tubing is stronger still. So, when creating control arms from steel tubing you greatly increase the rigidity of the product, eliminating that slop from twisting and flexing. What does that mean for you behind the wheel? When it comes to tubular control arms vs stock you dive into a corner on our tubular control arms your vehicle will go where you point it to. Getting down on that brake pedal for some extreme braking? Even your brakes will perform better since your control arms aren’t flexing under that hard braking input.

These are the best tubular control arms Camaro and Nova owners will find and feature a robust 1-5/8-inch diameter tubing for the lower arms and 1-1/8-inch tubing for the uppers, both finished in a show-quality gloss black powder coat. Wall thickness of our tubular steel control arms is .156-inch on the lowers and .125-inch on the uppers. Due to the thickness and material diameters these control arms do weigh more than the stock stamped control arms, but the small trade off in unsprung weight for the vast increase in strength makes it worth the small weight penalty.

We have fitted greasable Delrin bushings and OE-spec ball joints to our tubular A arms with easy access grease fittings to make maintenance a breeze. Polyurethane bump stops are included for both upper and lower arm assemblies and these control arms are compatible with stock-style shock absorbers or can be used with aftermarket coilover shocks. Fitting coilover shocks requires removal of the OE-style shock mounting nuts that are welded to the lower control arm spring pocket. We also recommend our coilover reinforcement plate to ensure the coilover shock is properly supported in the Speedway Camaro control arms.

A Direct Bolt-In Solution That Is Easy to Install

Our tubular lower control arm bolts into place using the brand-new mounting hardware we have included in this kit to keep your project from grinding to a halt. We designed these lower arms to accept your stock sway bar end links, so there is no need to replace your sway bar or end links just to fit these control arms.

Due to the design of our tubular lower control arms, we highly recommend upgrading to disc brakes, as the drum brake backing plate interferes with the lower control arm and will require major surgery to retain your factory drum brakes up front. Lastly, we revised the spring pocket location to allow a lowered ride height of approximately 1-1/2 to 2-inches without introducing ride harshness of a lowering spring.

The tubular upper arm in our kit features 4 degrees of positive caster with the included caster keys installed with the mounting holes towards the rear of the car. Additional caster can be dialed in by flipping the caster keys so that the mounting holes are towards the front of the car. All new mounting hardware for the tubular upper control arms is included as well. Don’t waste time trying to use decades old worn-out hardware or track down the right fasteners, just order our complete kit! We also include a full set of alignment shims for your upper control arms if your old shims are damaged or you need additional shims to set your alignment to your preferred specifications.

What more could you ask for from a Speedway tubular control arm kit like this? Your muscle car gains increased handling, lower ride height, performance bushings with minimal deflection, and more, all without the cost of upgrading to an aftermarket subframe and the major work that entails.

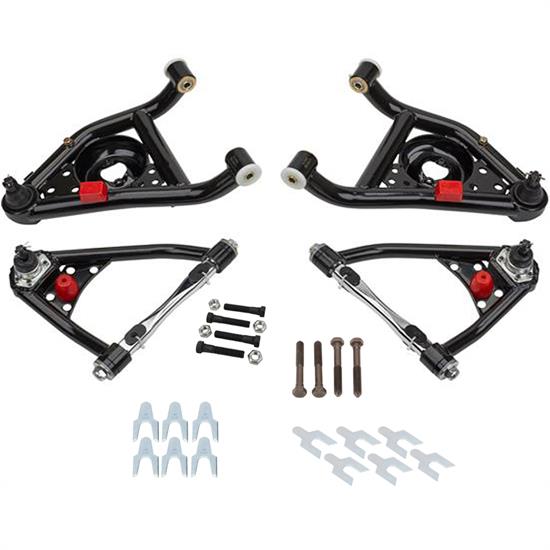

Kit Includes:

• (1) Set of 1967-69 Camaro/1968-74 Nova Tubular Upper And Lower Control Arms
• (4) Lower Control Arm Frame Bolts, 1/2-13 Thread For 67-69 Camaro/68-74 Nova
• (4) 1/2-13 Correct Style Lower Control Arm Top Lock Nuts, 1964-74 GM
• (4) Upper Control Arm Shaft Bolt and Nut Kit, 7/16-14, 1/8-inch knurl, .469-inch knurl diameter, 1964-74 GM
• (6) Upper Control Arm 1/32-Inch Alignment Shims, 9/16 Slot Size, Zinc
• (6) Upper Control Arm 1/8-Inch Alignment Shims, 9/16 Slot Size, Zinc
