Part # 91604012

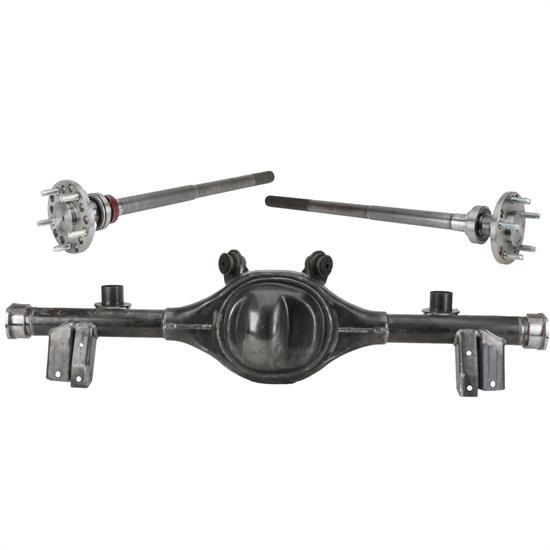

1964-67 A-Body Ford 9 Inch Housing/Axles with Coilover Suspension

by

|

  • Designed to replace the original 1964-1967 GM A-Body rearend housing
  • Compatible with the stock 4-link trailing arm rear suspension found in your Chevelle, Malibu, El Camino, GTO, LeMans, Tempest, F85, Cutlass, 442, Special, Skylark & Gran Sport
  • Greatly increased strength (reliability)

$2,383.99

kit

In Stock

$2,508.66

Save $124.67


Quantity

Select a vehicle to verify Fitment

Product Summary

  • Designed to replace the original 1964-1967 GM A-Body rearend housing
  • Compatible with the stock 4-link trailing arm rear suspension found in your Chevelle, Malibu, El Camino, GTO, LeMans, Tempest, F85, Cutlass, 442, Special, Skylark & Gran Sport
  • Greatly increased strength (reliability)
  • Variability of the housing to accept almost any gear ratio from 2.47:1 to 6.14:1
  • Steel axle retainers keep the axle/wheel in place in the event of axle failure

Comes as a Kit

Key Specs

BrandSpeedway Motors

Need To Know

Need help? Call 800.979.0122

Quick and Easy Returns

Details

These bolt-in rear axle packages are designed to replace the original '64-'67 GM A-Body rearend housing and are compatible with the stock 4-link trailing arm rear suspension found in your Chevelle/Malibu/El Camino/GTO/LeMans/Tempest/F85/Cutlass/442/Special/Skylark/Gran Sport. The major advantages gained by upgrading to a Ford 9" axle include:

A) Greatly increased strength (reliability)

B) The variability of the housing to accept almost any gear ratio from 2.47:1 to 6.14:1

C) A drop-out third member for ease of service

D) Steel axle retainers which keep the axle/wheel in place in the event of axle failure

If you're upgrading your rear end and axles though, why stop there? This kit also includes everything you need to convert your stock rear suspension to a coil-over suspension with a QA1 Coil-Over Conversion Kit. QA1's kit includes specifically designed mounting brackets and single adjustable aluminum shocks for the 1964-1967 A-Body with all hardware included. To round it all out we have also thrown in a new sway bar, new trailing arms (with hardware), and new trailing arm mount braces. Give the rear of your car the upgrades it deserves! Just add the third member and brake kit of your choice (both sold separately) to complete your installation.

Kit includes:

  • 990-06466 Speedway Ford 9 Inch Bolt-In Rear End Axle for 1964-67 GM A-Body
  • 721-52340 QA1 RCK52340 Rear Coil-Over Conversion Kit, 1964-72 A-Body, 150 Pound
  • 916-6472.1 64-72 A-Body Trailing Arm Hardware
  • 916-6472.2 64-72 1.125 Inch Rear Swaybar
  • 916-6472.L 64-72 A-Body Heavy Rear Lower Trailing Arm, Left Side
  • 916-6472.R 64-72 A-Body Heavy Rear Lower Trailing Arm, Right Side
  • 916-6467 Trailing Arm Mount Brace, 1964-67 A-Body, Pair
  • (2) 916-1964.1 64-67 A-Body Adjustable Upper Arm

Additional Information:

  • 990-06466 Speedway Ford 9 Inch Bolt-In Rear End Axle for 1964-67 GM A-Body
    • New stamped steel housing center piece
    • New billet steel housing ends with oil seal surface ("Big New Ford" Torino-style)
    • 3" O.D. DOM 3/16" wall axle tubes
    • 31-spline axles w/ bearings, studs and retainers
    • Axles have 2.5" of offest on each side
    • 1/2"-20 wheel studs, 2" long
    • 5 x 4-3/4" wheel bolt pattern
    • Jig welded suspension brackets for stock style suspension
    • Built to stock width
  • 721-52340 QA1 RCK52340 Rear Coil-Over Conversion Kit, 1964-72 A-Body, 150 Pound
    • Easy bolt-in installation
    • No cutting or welding
    • 150 pound spring rate
    • Aluminum construction
    • All hardware included
    • Single adjustable
    • Lowers vehicle
    • 100% dyno tested
  • 916-6472.1 64-72 A-Body Trailing Arm Hardware
    • Includes 8 bolts, washers, and nuts
  • 916-6472.2 64-72 1.125 Inch Rear Swaybar
    • Black in color
    • 1.125" Diameter
  • 916-6472.L 64-72 A-Body Heavy Rear Lower Trailing Arm, Left Side
    • Tubular
    • Polyurethane bushings
  • 916-6472.R 64-72 A-Body Heavy Rear Lower Trailing Arm, Right Side
    • Tubular
    • Polyurethane bushings
  • 916-6467 Trailing Arm Mount Brace, 1964-67 A-Body, Pair
  • 916-1964.1 64-67 A-Body Adjustable Upper Arm
    • Fully Adjustable
    • Polyurethane bushings
    • 1.25" O.D.

Rearend Housing 3rd Member Carrier Studs are not included but available as # 919-0915 as needed

Additional Information:

  • 990-06466 Speedway Ford 9 Inch Bolt-In Rear End Axle for 1964-67 GM A-Body
    • New stamped steel housing center piece
    • New billet steel housing ends with oil seal surface ("Big New Ford" Torino-style)
    • 3" O.D. DOM 3/16" wall axle tubes
    • 31-spline axles w/ bearings, studs and retainers
    • Axles have 2.5" of offest on each side
    • 1/2"-20 wheel studs, 2" long
    • 5 x 4-3/4" wheel bolt pattern
    • Jig welded suspension brackets for stock style suspension
    • Built to stock width
  • 721-52340 QA1 RCK52340 Rear Coil-Over Conversion Kit, 1964-72 A-Body, 150 Pound
    • Easy bolt-in installation
    • No cutting or welding
    • 150 pound spring rate
    • Aluminum construction
    • All hardware included
    • Single adjustable
    • Lowers vehicle
    • 100% dyno tested
  • 916-6472.1 64-72 A-Body Trailing Arm Hardware
    • Includes 8 bolts, washers, and nuts
  • 916-6472.2 64-72 1.125 Inch Rear Swaybar
    • Black in color
    • 1.125" Diameter
  • 916-6472.L 64-72 A-Body Heavy Rear Lower Trailing Arm, Left Side
    • Tubular
    • Polyurethane bushings
  • 916-6472.R 64-72 A-Body Heavy Rear Lower Trailing Arm, Right Side
    • Tubular
    • Polyurethane bushings
  • 916-6467 Trailing Arm Mount Brace, 1964-67 A-Body, Pair
  • 916-1964.1 64-67 A-Body Adjustable Upper Arm
    • Fully Adjustable
    • Polyurethane bushings
    • 1.25" O.D.

Rearend Housing 3rd Member Carrier Studs are not included but available as # 919-0915 as needed

Specifications

KEY SPECS
BrandSpeedway Motors
GENERAL
Sold in QuantityKit
