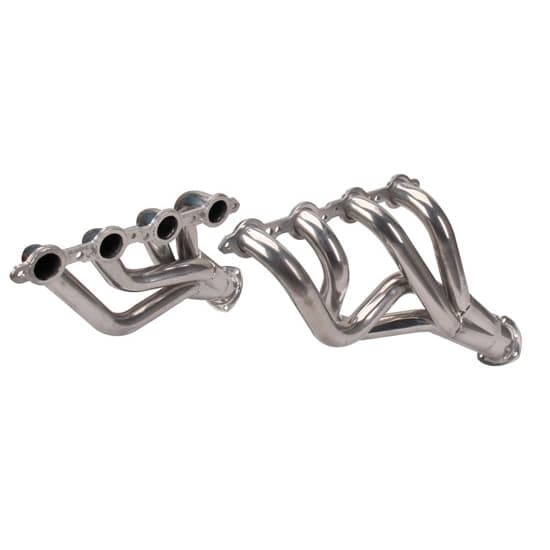

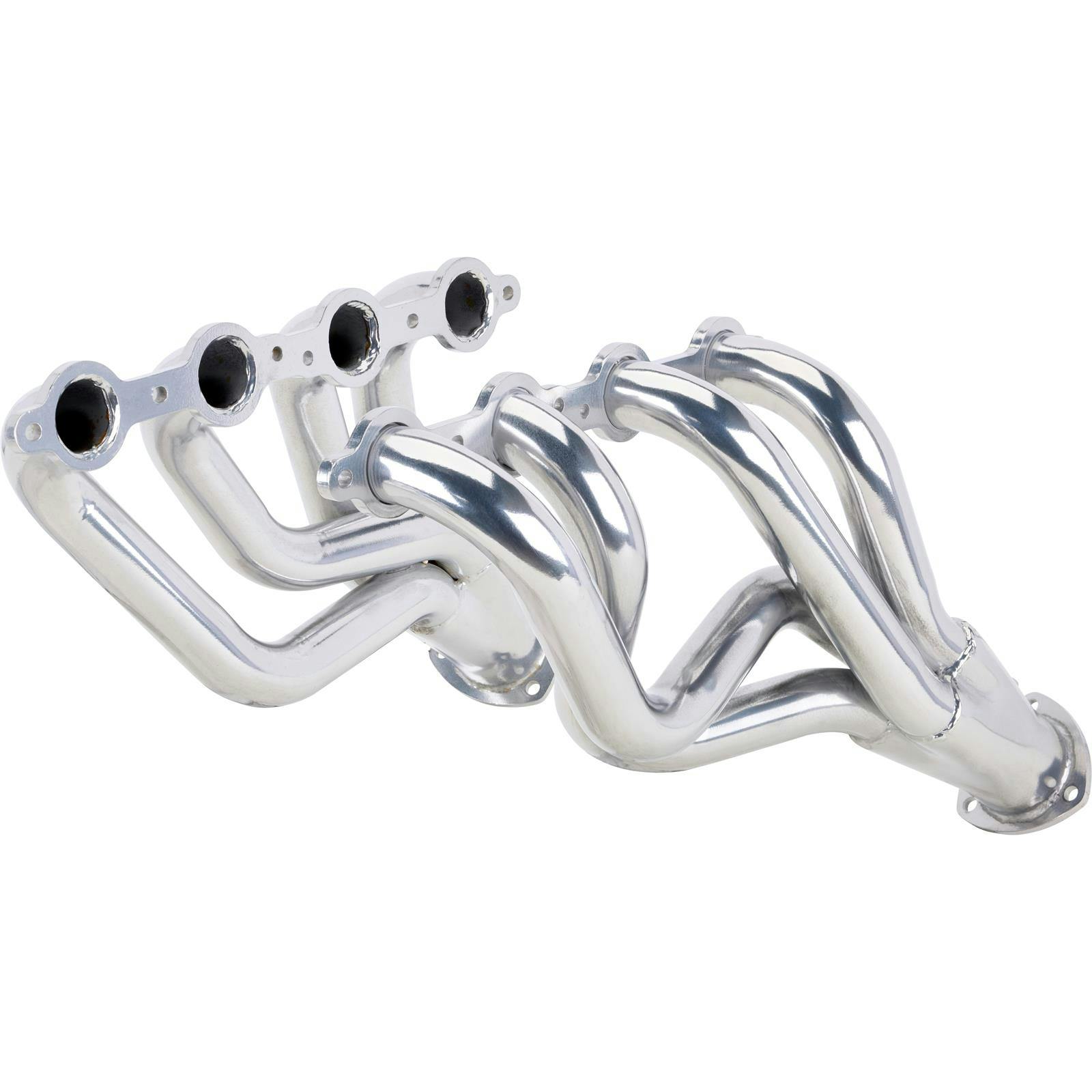

1955-57 Chevy LS1 Clipster Headers, AHC Coated

#930C46H

1955-57 Chevy LS1 Clipster Headers, AHC Coated

Name: 1955-57 Chevy LS1 Clipster Headers, AHC Coated
Brand: Speedway Motors
SKU: 930C46H
Price: 629.99 USD
Availability: InStock
Rating: 4.4 (5 reviews)

5 Reviews

3 Questions

Feature 1 3/4" primary tubes and 3" collectors
Oxygen sensor bung welded to collectors
Armor Hot Coat® is a Speedway Motors custom ceramic heat proof coating that will keep the finish of these headers looking great for years to come

Finish:

Silver Ceramic

Plain

$629.99

/pair

In Stock

Garage Sale alternatives: from $481.09

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

Mid-Length Header Tube Type, Round Exhaust Port Shape

Feature 1 3/4" primary tubes and 3" collectors
Oxygen sensor bung welded to collectors
Armor Hot Coat® is a Speedway Motors custom ceramic heat proof coating that will keep the finish of these headers looking great for years to come

See more details

Key Specs

MFG. Part #	930C46H
Header Tube Type	Mid-Length
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-3/4"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 930C46H Details

These headers allow you to install the popular LS1 engine in your 1955-1957 Chevy car. They feature 1-3/4" primary tubes and 3" collectors. Oxygen sensor bung welded to collectors. These ceramic coated headers provide superior performance and durability.

Note: These headers will not clear motor mount part number 720-4501 and 916-55571.

Charts

Header Dimension Chart (JPG)

Guides & Documents

Headers Sizing Chart (930C46H)

Choosing the Right Headers

Warranty Information

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Speedway Motors 930C46H Specifications

KEY SPECS
MFG. Part #	930C46H
Brand	Speedway Motors
Header Tube Type	Mid-Length
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-3/4"
Material Type	Steel
Color	Silver
Weld-Up	No
Collector Diameter	3 Inch
Finish	Ceramic Coated
Hardware Included	Yes
Gasket(s) Included	Yes
Collector Reducers Included	Yes
Collector Reducer Exit Diameter	2.5"
Collector Attachment Type	3-bolt flange

GENERAL
Sold in Quantity	Pair
Notes	Includes a pair of reducers (3.00" to 2.50")
Collector Length	7"
Flange Thickness	0.31"
Port Height	1.73"
Port Width	1.73"
Drivers Side Dimension A	8.25"
Drivers Side Dimension B	15.5"
Drivers Side Dimension C	23.75"
Passenger Side Dimension A	7.95"
Passenger Side Dimension B	15.05"
Passenger Side Dimension C	24.13"

Ratings & Reviews

4.4

5 Reviews

Overall Assessment

Customers generally appreciate the aesthetic and finish of our product. They commend the inclusion of all necessary gaskets and bolts, which aids in its practicality. However, some buyers experienced fit issues with specific motor mounts or steering gear boxes, suggesting greater compatibility with rack and pinion steering. The product's usability was positively highlighted by a customer who successfully installed it after some adjustments and was willing to buy another for future use. Despite some adaptation needs, customers praised its overall quality and suitability for specific projects.

Write A Review

4.4

5 reviews

Filter by Ratings

Sort Reviews

Good finish nice looking product

4.0

8 years ago

Arrin

Oregon

Verified

Awesome looking headers. Came with all gaskets and bolts needed, however, they would not fit with my motor mounts. It's always a shot in the dark with motor swapped cars.

Great headers at a great price and fast shipping

5.0

8 years ago

Lsx55chevy

Rock hill S.C.

Verified

I plan on buying a second set for my next project!

Would Recommend

Doesn't work with rack and pinion

4.0

8 years ago

57 belair

Verified

Headers fit good with LS2 in a 57 belair, but the second pipe on the drivers side goes straight down in front of the rack and pinion. Would probably work with a stock gear box

Would Recommend

Fits well with a little patience.

5.0

8 years ago

James

Cda Idaho

Verified

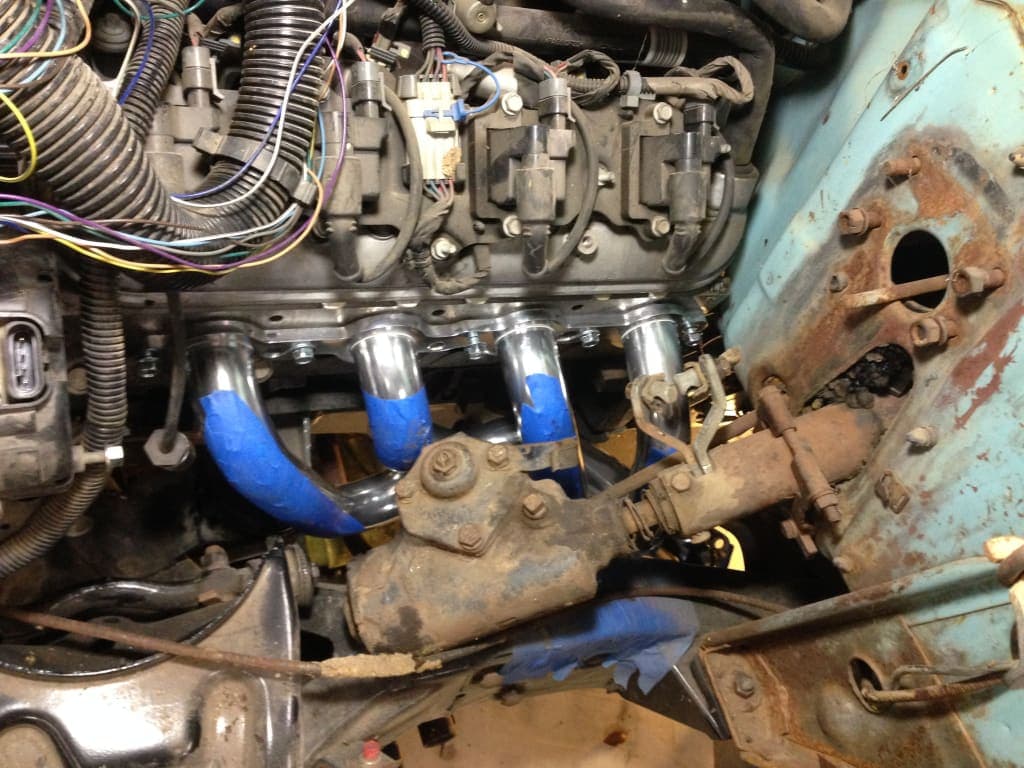

At first they looked like they wouldn't fit. I have a 1956 Chevrolet 210 with a 5.3/4l60e combo. Speedway motor mounts (forward platform style with the rubber pucks) and a set of coverstion plates for the 5.3 to sbc adapter plates. The key to the install was to un bolt the motor mount and lift the driver side of the engine for install. Have some patience and use masking tape to protect you ahc coating. The steering box is super close. But a small amount of filing on the gear box upper cap edge gave me about 3/8 clearance. I also shimmed my motor mount puck about 1/4 of an inch to accommodate the headers. (But I custom fabricated my adapter plates to sit as low as possible)

Would Recommend

This product looks great.

4.0

12 years ago

Hotrod1949

Beavercreek, OR, USA

Verified

The left header won't clear my series 500 power steering gear box. My LS engine is on 3/4 forward mounts which should allow better clearance but the #3 cyl. tube hits the leading right corner of the gear box. This CPP box comes with an aluminum cover that can't be used without modification as well. The header appears to clear the gear box but only without a gasket. It looks as though the only way to make it fit is to clearance the #3 tube by dimpling it. These headers look like they would work without modification with rack and pinion steering.

Would Recommend

Showing 5 of 5 reviews

Questions & Answers

3 Questions • 4 Answers

Sort Questions

Will the LS Clipster headers clear both sides of Art Morrison tri-five chassis?

by Rick

• 8 years ago

2 answers

View Answers

Do you sell a ls mount that will clear the header?

by Dw1973

• 11 years ago

1 answer

View Answer

will these headers clear 605/500 steering boxes and will they clear the standard "Z" bar clutch linkage (stock) with out having to go to a hydraulic set up.thanks,dave.

by ramjet

• 15 years ago

1 answer

View Answer

3 of 3 questions shown
