Product Summary

Front Position, 5 on 4.75" Bolt Pattern, Natural

  • These kits allow you to put disc brakes on your 1948-56 Ford 1/2 ton pick-ups
  • No spindle modifications are required
  • Includes rotors, bearings and seals, calipers, pads, brake hoses, brake tabs, and caliper brackets
  • With this kit you can get a more common 5 on 4 3/4" wheel bolt pattern
  • GM single piston calipers feature 7/16"-20 inlets

Comes as a Kit

Key Specs

MFG. Part #91031917
BrandSpeedway Motors
PositionFront
Rotor Diameter11 Inch
Rotor TypeVented

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

These kits allow you to put disc brakes on your 1948-56 Ford 1/2 ton pick-ups. No spindle modifications are required.

Basic Disc Brake Kit:

  • This basic disc brake kit installs '70-'77 Camaro rotors and '70-'77 Camaro (or GM equivalent) single-piston calipers on 1948-52 F1 and 1953-56 F100 Ford half-ton pickup truck spindles.

Rotor:

  • 11" front disc brake rotor
  • Has a 5 on 4-3/4" bolt pattern.

Caliper:

Mid and full size GM style caliper is a standard full size GM caliper used for years on many vehicles (1969-72 Chevelle, 73-77 A-Body, 1969-1981 Camaro, 1977 Caprice, S-10 pickups, etc). It will fit any bracket / spindle designed for the large GM calipers (7” mount width).

  • 7/16"-20 inlet so you can use the readily available brake hoses and hardware from Pre-1978 GM midsize cars
  • Fits 1" thick rotor. 2.8" diameter pistons installed
  • Has 7-1/16" center to center mounting holes
  • The width between mounting tabs is 2-3/4"
  • Depending on the spindle and rotor size it will not fit in most 14” wheels (nor in 15” drum brake wheels)

Wheel Bearing:

 Fits tapered-bearing hubs. Works with stepped shaft spindles

  • Steel
  • Outer bearing cones

Brake Pads:

  • Only use full metallic pads on coated rotors.
  • Organic compound for use on cast iron rotors, long life, low wear

Learn how to properly Bed-In your brake pads by reading our tech article. Bedding-In Brake Pad Procedure.

Bearing Cups:

These steel inner bearing cones are replacement for our GM to Ford brake conversion bearing and seal kits. Fits tapered-bearing hubs. Works with stepped shaft spindles.

  • Steel
  • Inner bearing cones
  • High quality through hardened bearing steel for improved reliability
  • High grade rollers have improved profile and surface finish for increased life and reduced edge stress.

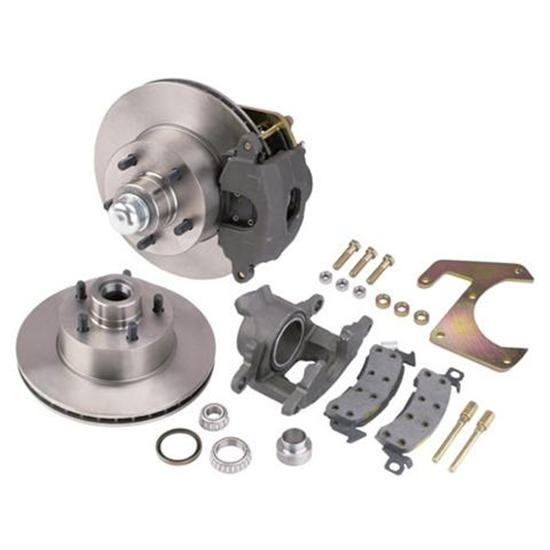

Kit Includes:

  • Vented cast iron rotors
  • GM single piston calipers (7/16"-20 inlets)
  • Brake pads
  • Caliper slide bolts
  • Rubber brake lines
  • Steel caliper brackets
  • Hardware
  • New bearing and seal adapters
  • Seals
  • Inner bearing cones
  • Outer bearing cones
  • Spacers
  • Dust caps

Charts

Specifications

KEY SPECS
MFG. Part #91031917
BrandSpeedway Motors
PositionFront
Rotor Diameter11 Inch
Rotor TypeVented
GENERAL
Bolt Pattern5 on 4.75"
Caliper PistonsOne
Caliper FinishNatural
ColorNatural
Parking Brake ProvisionNo
Rotor Thickness1.00"
Rotor ShapeRound
Stud Diameter.44"
Stud Length.94"
Thread Pitch7/16"
FinishNatural
Hardware IncludedYes
Sold in QuantityKit
NotesIncludes rotors, bearings and seals, calipers, pads, brake hoses, brake tabs, and caliper brackets.
Rotor Material TypeCast Iron
Front Rotor IncludedYes
Front Rotor Diameter11 Inch
Rear Rotor IncludedNo
Front Caliper IncludedYes
Front Caliper Piston Quantity1
Front Caliper FinishNatural
Rear Caliper IncludedNo
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
