#930C1

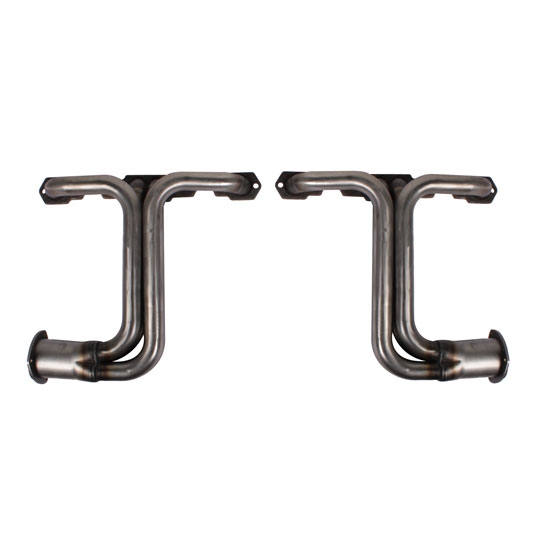

1928-34 Ford Chassis SBC Small Block Chevy V8 Headers, Raw Finish
by
Speedway Motors1 Review
|
2 Questions
- For '28-'34
- Use with any oil filter system or transmission and starter combination
- Measures 12 1/2" from center of the exhaust port to the top of the bend, and 10" from collector to front of primary
See More
$239.99
pair
In Stock
$266.00
Save $26.01
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, Chassis Header Tube Type, Raw
- For '28-'34
- Use with any oil filter system or transmission and starter combination
- Measures 12 1/2" from center of the exhaust port to the top of the bend, and 10" from collector to front of primary
- Works well with angle plug heads
- 1 1/2" primary tube size
See more details
Key Specs
| Header Tube Type | Chassis |
| Finish | Raw |
| Flange Style | Standard |
| Primary Tube Diameter | 1-1/2" |
| Material Type | Steel |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 930C1 Details
Speedway Motors 930C1 Details
Give your small block Chevy full-length header performance in a package that fits within the confines of your 1928-1934 Ford street rod chassis. These headers can be used with nearly any oil filter system or transmission and starter combination.
- Full-length header performance
- Tucks close to engine to allow room inside of narrow frame rails
- Works well with angle-plug heads
- Works with stock steering box and most Vega and Mustang conversions
- Due to variations in manufacturing and the unlimited engine/chassis combos, all dimensions, applications and measurements are approximations only!
Charts
Guides & Documents
Speedway Motors 930C1 Specifications
Speedway Motors 930C1 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 930C1 |
| Brand | Speedway Motors |
| Header Tube Type | Chassis |
| Finish | Raw |
| Flange Style | Standard |
| Primary Tube Diameter | 1-1/2" |
| Material Type | Steel |
| Color | Natural |
| Weld-Up | No |
| Exhaust Port Shape | Round |
| Collector Diameter | 3 Inch |
| Hardware Included | Yes |
| Gasket(s) Included | Yes |
| Collector Attachment Type | 3-bolt flange |
| Collector Reducers Included | Yes |
| Collector Reducer Exit Diameter | 2.25" |
| GENERAL | |
| Overall Height | 16.7" |
| Tube Length | 19" |
| Collector Length | 4.75" |
| Flange Thickness | .31" |
| Port Height | 1.64" |
| Port Width | 1.54" |
| Header Dimension A | 3.50" |
| Header Dimension B | 16.70" |
| Header Dimension C | 19.00" |
| Drivers Side Dimension A | 4.25" |
| Drivers Side Dimension B | 16.55" |
| Passenger Side Dimension A | 4.22" |
| Passenger Side Dimension B | 17" |
| Sold in Quantity | Pair |
| Notes | There is no "C" dimension for these headers. Includes a pair of reducers (3.00" to 2.25") |
