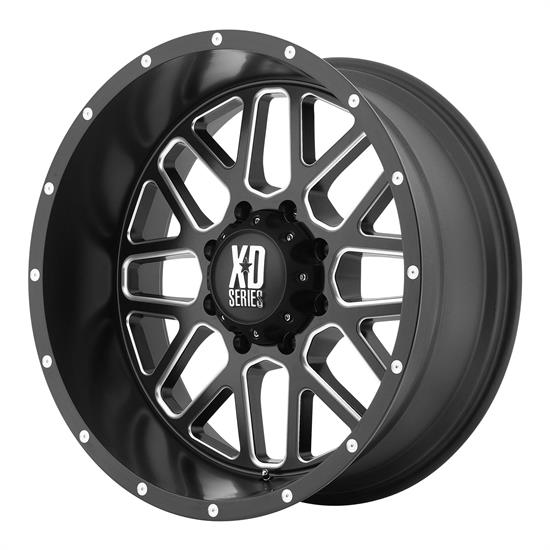

Designed and built to handle even the toughest of conditions - XD Series Wheels were born to serve you in the most extreme environments, bred to withstand the rigors of the Baja 1000. Extreme-duty designs and materials to put up with your rough and tough life style, whether on road or off the beaten path. XD Series Wheels are race-tested and strong enough to endure any of your wildest adventures!

Features a Satin Finish
Wheel diameter of 18 inches with a width of 9 inches
Made from Cast Aluminum
1-year warranty on wheel finish

Guides & Documents

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

CA Prop 65

XD XD82089087912N Specifications

KEY SPECS
MFG. Part #	XD82089087912N
Brand	XD
Wheel Diameter	18 Inch
Width	9"
Wheel Bolt Pattern (in.)	Metric Pattern Only
Wheel Bolt Pattern (mm)	8x170 mm
Wheel Backspace	4.53"
Wheel Material Type	Cast Aluminum
Wheel Offset	-12 mm
Wheel Backspace Range	4.500" - 4.999"
Finish	Satin
Color	Black
Beadlock Included	No
Material Type	Cast Aluminum
Bolt Pattern	8 on 170mm

GENERAL
DOT-Approved	Yes
Weight	33 lbs.
Load Capacity	3640 lbs.
Notes	Satin Black Milled
Valve Stem Included	No
GTIN Code	885463105642
Lug Nut Seat Style	60 Degree Conical
Center Cap Included	Yes
Warranty	1-year on wheel finish
Lug Nuts Included	No
Offset	-12"

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2010-2018 Ford E-350 Super Duty

2000-2005 Ford Excursion

1999-2014 Ford F-250

1999-2018 Ford F-250 Super Duty

1998-2015 Ford F-350

1999-2018 Ford F-350 Super Duty
