Part # 120XD820018

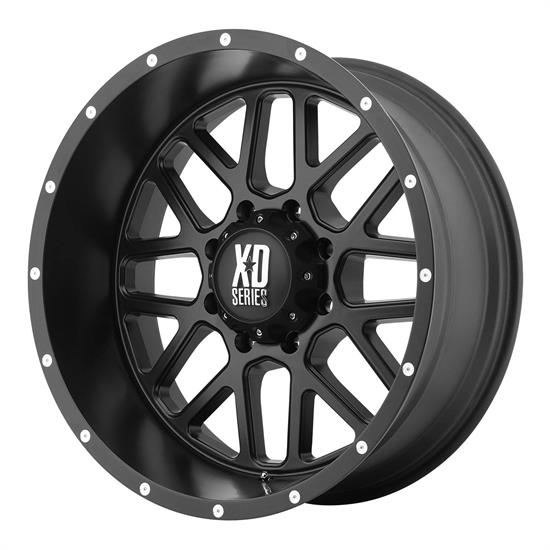

XD XD82021080724N Grenade Series Wheel, 20 x 10
by
XD
$402.00
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before August 15th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
20 Inch Wheel Diameter, Cast Aluminum, 10" Width, Satin
See more details
Key Specs
| Wheel Diameter | 20 Inch |
| Material Type | Cast Aluminum |
| Width | 10" |
| Wheel Bolt Pattern (in.) | 8x6.5 in. |
| Wheel Bolt Pattern (mm) | 8x165.1 mm |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Designed and built to handle even the toughest of conditions - XD Series Wheels were born to serve you in the most extreme environments, bred to withstand the rigors of the Baja 1000. Extreme-duty designs and materials to put up with your rough and tough life style, whether on road or off the beaten path. XD Series Wheels are race-tested and strong enough to endure any of your wildest adventures!
- Features a Satin Finish
- Wheel diameter of 20 inches with a width of 10 inches
- Made from Cast Aluminum
- 1-year warranty on wheel finish
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | XD82021080724N |
| Brand | XD |
| Wheel Diameter | 20 Inch |
| Material Type | Cast Aluminum |
| Width | 10" |
| Wheel Bolt Pattern (in.) | 8x6.5 in. |
| Wheel Bolt Pattern (mm) | 8x165.1 mm |
| Wheel Backspace | 4.56" |
| Wheel Offset | -24 mm |
| Finish | Satin |
| Color | Black |
| Beadlock Included | No |
| GENERAL | |
| Wheel Backspace Range | 4.500" - 4.999" |
| Offset | -24 mm |
| Weight | 41 lbs. |
| Load Capacity | 3640 lbs. |
| GTIN Code | 885463105277 |
| Lug Nut Seat Style | 60 Degree Conical |
| Warranty | 1-year on wheel finish |
| Bolt Pattern | 8 on 6.5" |
