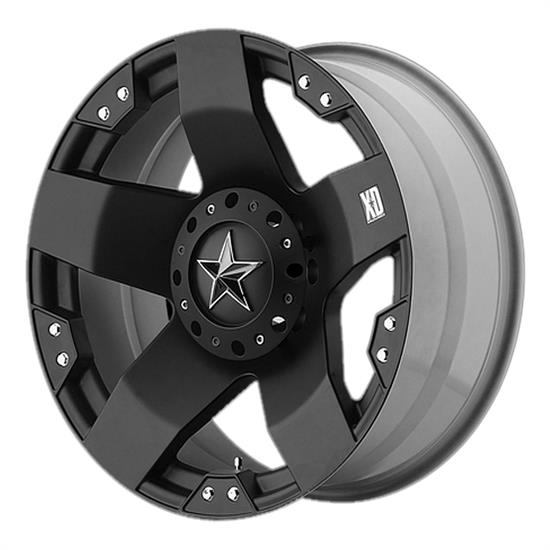

Designed and built to handle even the toughest of conditions - XD Series Wheels were born to serve you in the most extreme environments, bred to withstand the rigors of the Baja 1000. Extreme-duty designs and materials to put up with your rough and tough life style, whether on road or off the beaten path. XD Series Wheels are race-tested and strong enough to endure any of your wildest adventures!

Features a Matte Finish
Wheel diameter of 17 inches with a width of 8 inches
Made from Cast Aluminum
1-year warranty on wheel finish

Guides & Documents

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

CA Prop 65

XD XD77578004310 Specifications

KEY SPECS
MFG. Part #	XD77578004310
Brand	XD
Wheel Diameter	17 Inch
Width	8"
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Wheel Bolt Pattern (mm)	5x114.3 mm \| 5x120.65 mm
Wheel Backspace	4.89"
Wheel Material Type	Cast Aluminum
Wheel Offset	10 mm
Wheel Backspace Range	4.500" - 4.999"
Finish	Matte
Color	Black
Beadlock Included	No
Bolt Pattern	Dual: 5 on 4.5" \| 4.75"
Material Type	Cast Aluminum

GENERAL
Notes	Matte Black
GTIN Code	885463060859
DOT-Approved	Yes
Weight	31 lbs.
Load Capacity	2500 lbs.
Valve Stem Included	No
Lug Nut Seat Style	60 Degree Conical
Center Cap Included	Yes
Warranty	1-year on wheel finish
Lug Nuts Included	No
Offset	10"
