Wilwood Disc Brake Kit, 49-54 Chevy Spindles, 4-Piston, Vented Rotor
Wilwood Disc Brake Kit, 49-54 Chevy Spindles, 4-Piston, Vented Rotor

Wilwood Disc Brake Kit, 49-54 Chevy Spindles, 4-Piston, Vented Rotor

Universal Fit, Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 10.75 Inch Rotor Diameter

3 Reviews | 1 Answered Question
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select a vehicle to verify fitment.
Select Vehicle
Wilwood Disc Brake Kit, 49-54 Chevy Spindles, 4-Piston, Vented Rotor
Wilwood Disc Brake Kit, 49-54 Chevy Spindles, 4-Piston, Vented Rotor
Wilwood Disc Brake Kit, 49-54 Chevy Spindles, 4-Piston, Vented Rotor
X
Wilwood Disc Brake Kit, 49-54 Chevy Spindles, 4-Piston, Vented Rotor
Zoomed In Image
Part # 835140152
$749.99
kit
Call to Order
Add to Buildlist
Click to Login
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Hubs are drilled for both 5 x 4.5" and 5 x 4.75" bolt patterns
  • Includes forged Dynalite four-piston calipers with a silver finish
  • Specifically designed for Speedway Motors '49-'54 Chevy car spindles
  • Kit includes rotors, hubs, bearings and seals, calipers, caliper brackets, and pads
  • Comes with .810" wide x 10-3/4" diameter Ultralite HP 30 Vane rotors with a plain finish

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
10.75 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Type III Anodized
Color:
Gray
Parking Brake Provision:
No
Rotor Thickness:
.81"
Rotor Shape:
Round
Hardware Included:
Yes
Sold in Quantity:
Kit
Notes:
Includes rotors, hubs, bearings and seals, calipers, caliper brackets, and pads.
Front Rotor Included:
Yes
Front Rotor Diameter:
10.75 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front caliper Piston Quantity:
4
Front Caliper Finish:
Gray Type III Anodized
Rear caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

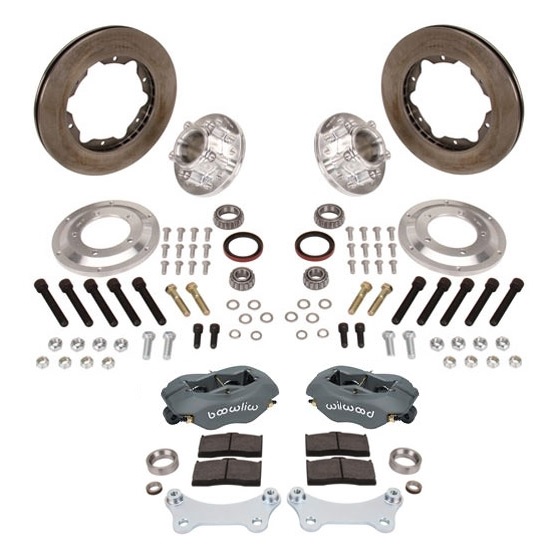

Check out this complete brake package for modified Speedway Motors '49-'54 Chevy car spindles. These kits feature aluminum hubs, vented iron rotors, 4-piston aluminum calipers, bearings, seals, steel brackets, and all necessary hardware. Hubs are drilled for both 5 x 4.5" and 5 x 4.75" bolt patterns.

  • Forged Dynalite four-piston calipers - silver finish
  • Polymatrix D brake pads
  • .810" wide x 10-3/4" diameter Ultralite HP 30 Vane rotors - plain finish
  • Caliper has a 1/8" NPT inlet

Notes

  1. This kit is not applicable to the original 1949-54 Chevy spindles as the spindle must be machined and modified to allow for the installation of this kit.
  2. If using steel wheels with this kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheelsfrom galling the aluminum hub.
  3. When using this kit with a tube axle, you must use flat steering arms. 15" minimum wheel diameter for all kits.

Charts

835-140152 Instructions (PDF)

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Basic Kit for 835-140152
    Part # 83514016
    Qty x 1
  • 4 Piston Caliper Brake Kit Chevy
    Part # 91631912-PLN
    Qty x 1
  • Wilwood 120-6816 Forged Dynalite Caliper, 1.75 Piston / .81 Inch Disc
    Part # 8351206816
    Qty x 2
  • Wilwood 150-8850 Poly-D 10 Double Quick Change Brake Pad
    Part # 8353991
    Qty x 4
  • Instruction Sheet - Brake Kit
    Part # 835140152-INST
    Qty x 1
