Wilwood Aluminum Master Cylinder Tandem Mount Balance Bar Kit

This Wilwood combination kit includes two two high-volume aluminum master cylinders along with Wilwood's tandem mount balance bar assembly. You can choose two independent bore options from 3/4", 7/8" and 1" master cylinders.

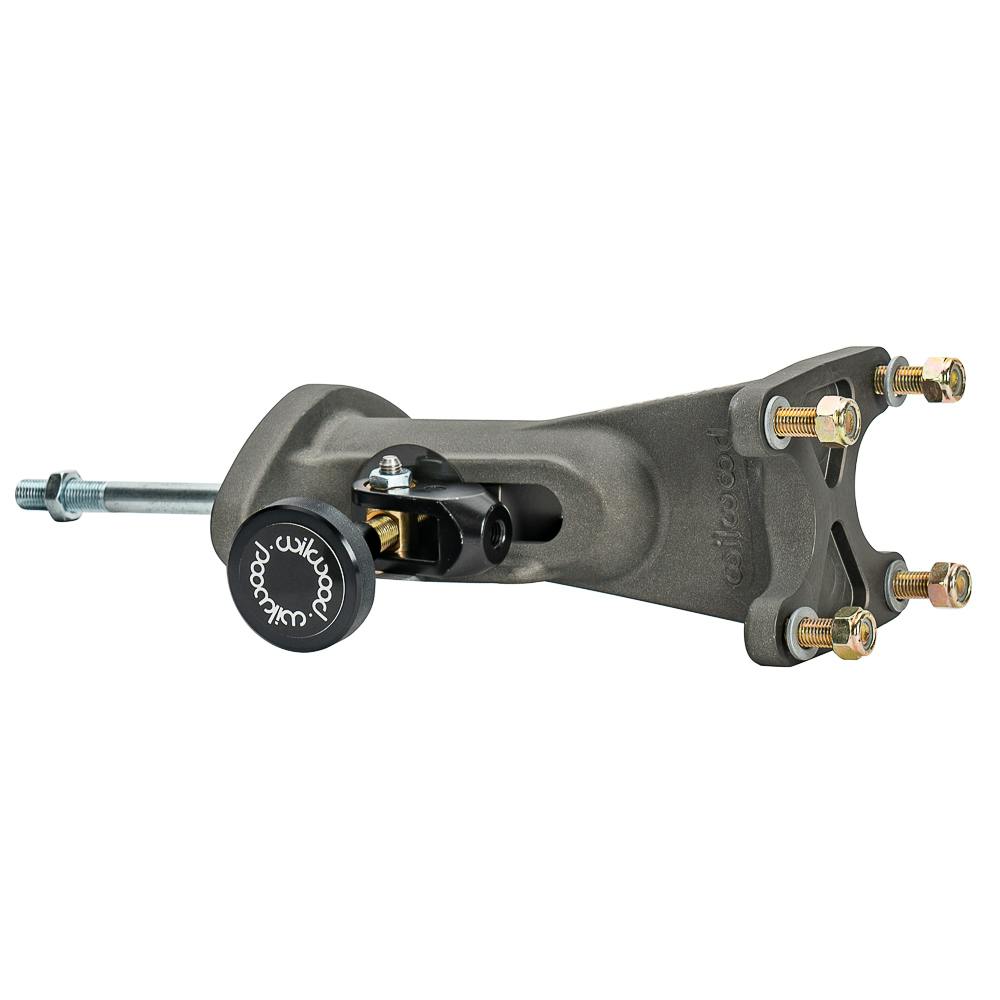

Wilwood 340-16920 Universal Tandem Mount Balance Bar Assembly

Wilwood's Tandem Mount Balance Bar Assembly bolts in place of a typical horizontal bolt pattern tandem master cylinder and provides a sturdy mounting location for two race-type vertical bolt pattern master cylinders, with no custom fabrication needed. Providing The ultimate in brake bias control for performance and race vehicles is an adjustable balance bar with dual master cylinders. Ideal for modified street cars/trucks needing fast and easy brake bias adjustability to optimize braking for different performance driving situations and skillsets.

• Bolts in place of a typical horizontal bolt pattern tandem master cylinder
• Sturdy mounting location for two race-type vertical bolt pattern master cylinders
• Adjustable brake bias balance bar
• Designed with oval mounting holes for 3.22" to 3.40" on center studs
• 2.25" on center vertical bolt holes

Wilwood High-Volume Aluminum Master Cylinder-1/8-27 NPT

An internal slosh baffle guarantees a constant fluid supply to the bore chamber during hard cornering, acceleration and braking. This unique baffle also eliminates aeration into the reservoir from return fluid that can occur during brake release and bleeding procedures.

• Die-cast from high-grade aluminum
• Heavy-duty internal piston springs provide fast retraction for immediate release and positive fluid transfer without the need for cumbersome external pushrod springs
• Pedal feel is improved, piston retraction is guaranteed, fluid recovery is quicker and the bleeding process is simplified
• Formed steel lids, heavyweight bail wires and bellows type gaskets keep the fluid in and the moisture out with correct pressure balancing during fluid displacement
• 1/8"-27 NPT fluid port

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.
