Wilwood 340-14360 Fwd Dual Pedal w/HV Tandem Integral MC, 6.25:1

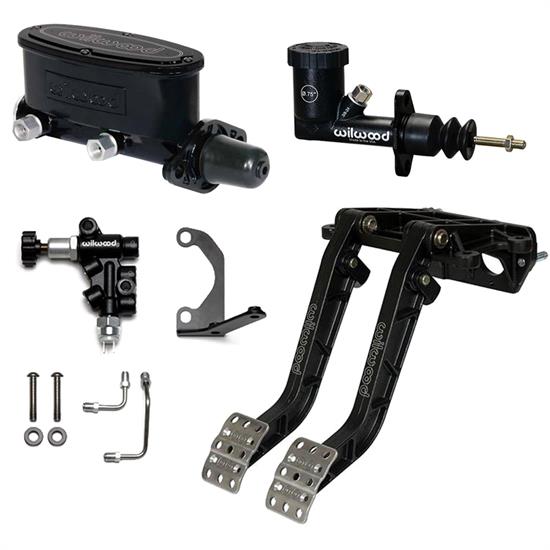

Kit Includes:

• (1) Wilwood 340-14360 Tru-Bar Brake Pedals, Swing Mount, Brake/Clutch
• (1) Wilwood 260-8556-BK H/V Tandem Master Cylinder, 1-1/8 Inch Bore, Black
• (1) Wilwood 260-15048 RH Combination Proportioning Valve/Bracket
• (1) Wilwood 260-15098 GS Compact Integral Master Cylinder, 0.75 Inch



Wilwood 340-14360 Tru-Bar Brake Pedals, Swing Mount, Brake/Clutch

• Wilwood's new Swing Mount Tandem Brake and Clutch Assembly simplifies installing a tandem outlet, single pushrod brake master cylinder in conjunction with a hydraulic clutch master cylinder in a forward position outside the firewall
• Pedal base has additional mount points for vertical mount 2.50” spacing tandem master cylinders using 5/16-18 studs
• Clutch master cylinder mount is also a 2.50” vertical mount
• Features lightweight aluminum frame
• I-Beam style forged aluminum pedal arms
• Mounted Length 12.38"
• Pedal 1 Ratio: 6.25 to 1
• Pedal 2 Ratio: 6.25 to 1
• Pedal 1 Length: 12.05"
• Pedal 2 Length: 12.05"



Wilwood 260-8556-BK H/V Tandem Master Cylinder, 1-1/8 Inch Bore, Black

• Designed primarily for manual applications and include a pushrod
• 1.125" bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems
• They're designed for mount flanges from 3.22" to 3.40", common measurements for most domestic cars and trucks from the mid 1960s to present
• Offer fluid outlet ports on both sides of the bore
• The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers
• Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders
• We also offer a our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders



Wilwood 260-15048 RH Combination Proportioning Valve/Bracket

• Specifically designed to work in conjunction with Wilwood Aluminum Tandem Master Cylinders in manual or boosted system applications
• Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder
• Stainless steel button head fasteners thread into the black e-coated bracket for a simple installation and years of durable, rust-free performance
• This complete Mounting Bracket Kit includes all the mounting hardware and combination proportioning valve

Features:

• RH bracket
• Stainless steel construction
• Mounting hardware included
• Includes proportioning valve



Wilwood 260-15098 GS Compact Integral Master Cylinder, 0.75 Inch

• New master cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish
• Remote cylinders feature a standard 7/16-20 threaded inlet
• Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release
• 0.75" bore size
• Aluminum construction
• Black E-Coat finish
• 8" overall length
