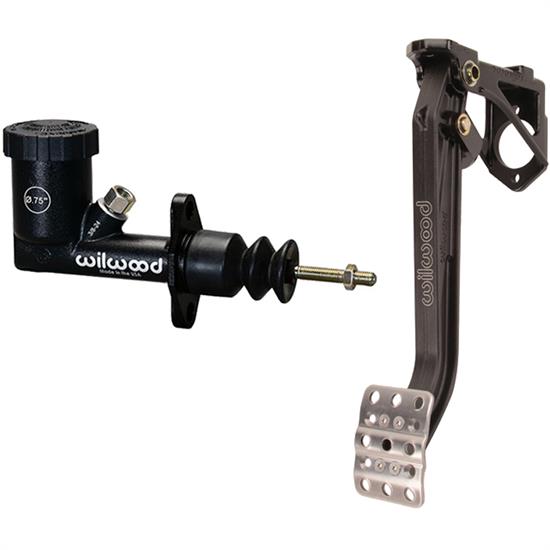

Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15097 GS CI MC,.70

Kit Includes:

• (1) Wilwood 340-13834 Swing Mount Clutch/Brake Pedal
• (1) Wilwood 260-15097 GS Compact Integral Master Cylinder, 0.70 Inch

Wilwood 340-13834 Swing Mount Clutch/Brake Pedal

• This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall
• This item features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal Arm
• The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary
• This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder
• Horizontal mount flange master cylinders require an adapter kit
• Aluminum construction
• Black E-Coat finish
• Forward mount facing

Wilwood 260-15097 GS Compact Integral Master Cylinder, 0.70 Inch

• New master cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish
• Remote cylinders feature a standard 7/16-20 threaded inlet
• Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release
• 0.70" bore size
• Aluminum construction
• Black E-Coat finish
• 8" overall length
