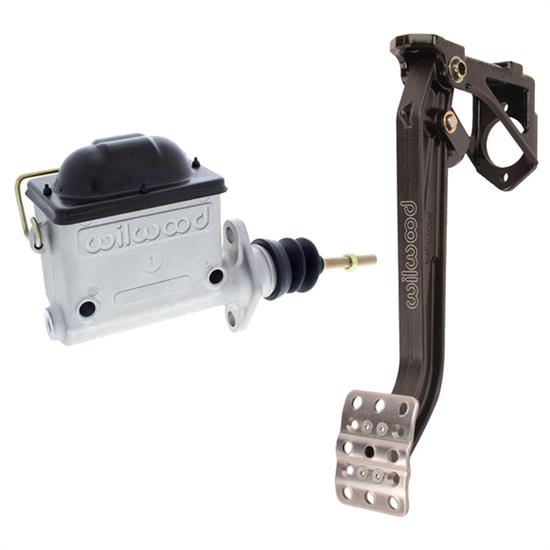

Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 7/8 Inch Bore

Kit Includes:

• (1) Wilwood 340-13834 Swing Mount Clutch/Brake Pedal
• (1) Wilwood High-Volume .875 Bore 7/8 Aluminum Master Cylinder-1/8-27



Wilwood 340-13834 Swing Mount Clutch/Brake Pedal

• This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall
• This item features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal Arm
• The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary
• This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder
• Horizontal mount flange master cylinders require an adapter kit
• Aluminum construction
• Black E-Coat finish
• Forward mount facing



Wilwood High-Volume .875 Bore 7/8 Aluminum Master Cylinder-1/8-27

• Wilwood high-volume aluminum master cylinders have the highest fluid capacity of any integral reservoir design
• With a total capacity of 8.2 ounces, there is at least 26% more fluid than most competitive brands
• More fluid volume means cooler temperatures and additional insurance for extreme conditions where high pad wear can compromise fluid levels during long events
• With 1-7/16" of piston travel, there is plenty of margin when used with large four or six piston calipers
• An internal slosh baffle guarantees a constant fluid supply to the bore chamber during hard cornering, acceleration and braking
• This unique baffle also eliminates aeration into the reservoir from return fluid that can occur during brake release and bleeding procedures
• Die-cast from high-grade aluminum
• Heavy-duty internal piston springs provide fast retraction for immediate release and positive fluid transfer without the need for cumbersome external pushrod springs
• Pedal feel is improved, piston retraction is guaranteed, fluid recovery is quicker and the bleeding process is simplified
• Formed steel lids, heavyweight bail wires and bellows type gaskets keep the fluid in and the moisture out with correct pressure balancing during fluid displacement
• 1/8"-27 NPT fluid port

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.
