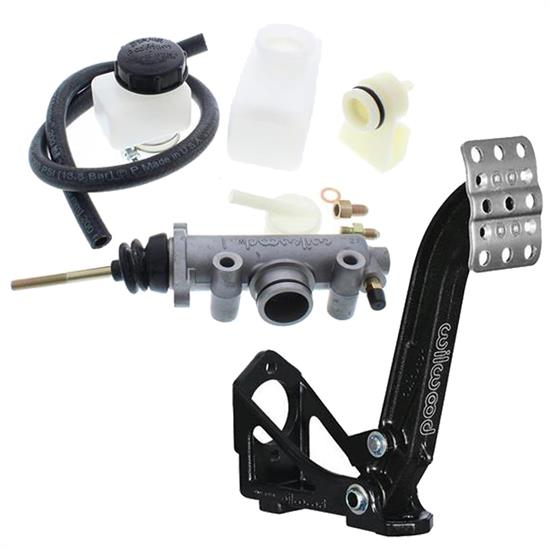

Wilwood 340-13833 6:1 Brake/Clutch Pedal w/260-3378 MC, 1 Inch

Kit Includes:

• (1) Wilwood 340-13833 Floor Mount 6:1 Clutch Pedal
• (1) Wilwood 260-3378 Universal Remote Master Cylinder, 1 Inch Bore



Wilwood 340-13833 Floor Mount 6:1 Clutch Pedal

• Lightweight aluminum floor mount pedal assembly
• Mounts a single brake or clutch master cylinder in the forward position outside the firewall
• High strength reinforced I-Beam style forged 6:1 ratio pedal arm
• Non-skid waffled pedal pad that can be laterally adjusted for your preference or clearance
• Will accept any Wilwood vertical mount flange single or tandem outlet master cylinder



Wilwood 260-3378 Universal Remote Master Cylinder, 1 Inch Bore

• Standard mounting bolt hole configurations provide easy applications for racing and off road vehicles, specialty cars, recreation and industrial vehicles
• Includes small and large reservoirs which can be direct or remote mounted
• Aluminum cylinder with plastic reservoir tank
• Mounting flange is a vertical pattern on a 2-1/4" on center
• Master cylinder has a single 3/8-24 brake line outlet
• The two side mount holes are 3" from center to center
• 1.00" = 1"

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.
