Wilwood 340-13833 6:1 Brake/Clutch Pedal w/260-3376 MC, 7/8 Inch

#9109210

Wilwood 340-13833 6:1 Brake/Clutch Pedal w/260-3376 MC, 7/8 Inch

Lightweight aluminum floor mount pedal assembly
High strength reinforced I-Beam style forged 6:1 ratio pedal arm
Non-skid waffled pedal pad that can be laterally adjusted for your preference or clearance

$232.69

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Single Outlet Count, 3/8"-24 IFF Outlet Fitting

Lightweight aluminum floor mount pedal assembly
High strength reinforced I-Beam style forged 6:1 ratio pedal arm
Non-skid waffled pedal pad that can be laterally adjusted for your preference or clearance
Includes small and large reservoirs which can be direct or remote mounted
.875" = 7/8" bore

Comes as a Kit

View Kit Components

See more details

Key Specs

Brand

Wilwood

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

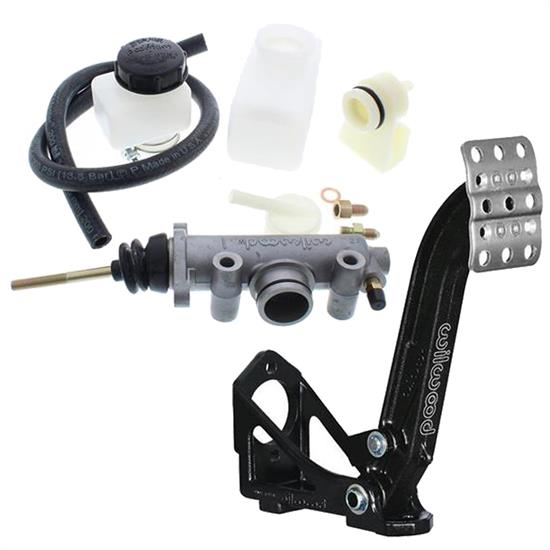

Kit Includes:

(1) Wilwood 340-13833 Floor Mount 6:1 Clutch Pedal
(1) Wilwood 260-3376 Universal Remote Master Cylinder, 7/8 Inch Bore

Wilwood 340-13833 Floor Mount 6:1 Clutch Pedal

Lightweight aluminum floor mount pedal assembly
Mounts a single brake or clutch master cylinder in the forward position outside the firewall
High strength reinforced I-Beam style forged 6:1 ratio pedal arm
Non-skid waffled pedal pad that can be laterally adjusted for your preference or clearance
Will accept any Wilwood vertical mount flange single or tandem outlet master cylinder

Wilwood 260-3376 Universal Remote Master Cylinder, 7/8 Inch Bore

Standard mounting bolt hole configurations provide easy applications for racing and off road vehicles, specialty cars, recreation and industrial vehicles
Includes small and large reservoirs which can be direct or remote mounted
Aluminum cylinder with plastic reservoir tank
Mounting flange is a vertical pattern on a 2-1/4" on center
Master cylinder has a single 3/8-24 brake line outlet
The two side mount holes are 3" from center to center
.875" = 7/8"

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

Charts

Installation Instructions(PDF)

70174 Instructions(PDF)

Guides & Documents

Master Cylinder/Pedal Kits Installation Instructions (9109210)

Clutch Pedals Installation Instructions (83534013833)

Master Cylinders Installation Instructions (83526013621)

Effects of Master Cylinder Bore Size on Your Brake System

Specifications

KEY SPECS
Brand	Wilwood

GENERAL
Outlet Count	Single
Outlet Fitting	3/8"-24 IFF
Finish	EDP Coated
Pedal 1 Length	9.63"
Pedal 1 Ratio	6:01
Brake Booster Included	No
Sold in Quantity	Kit
Mount Facing	Forward
Mount Position	Floor
