Wilwood 261-14962-BK Compact Tandem M/C w/Bracket and Valve

#83526114962BK

Wilwood 261-14962-BK Compact Tandem M/C w/Bracket and Valve

Name: Wilwood 261-14962-BK Compact Tandem M/C w/Bracket and Valve
Brand: Wilwood
SKU: 83526114962BK
Price: 511.34 USD
Availability: InStock

Write a Review

Ask a Question

Finish:

Black E-Coat

$511.34

/kit

Factory Shipped

$533.57

Save $22.23

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Tandem Outlet Count, E-Coat

See more details

Key Specs

MFG. Part #	261-14962-BK
Brand	Wilwood
Master Cylinder Bore Size	15/16 Inch
Master Cylinder Material	Aluminum
Finish	E-Coat

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 261-14962-BK Details

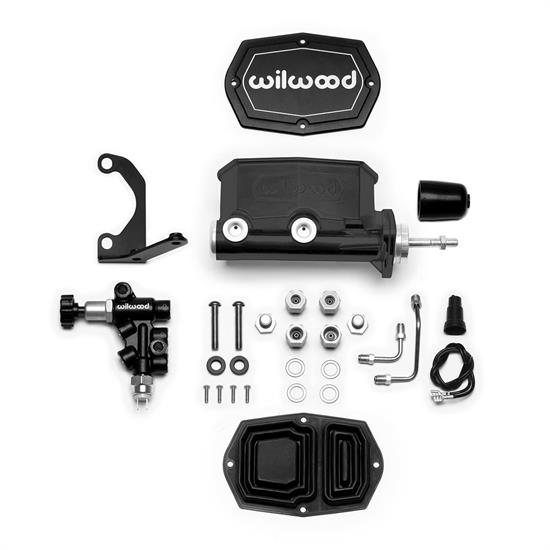

Wilwood has packaged the new Compact Tandem Chamber Master Cylinder (w/ pushrod) with the Combination Proportioning Valve, L/H mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control in a compact package with only 6.55" from mounting flange to end. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders with pushrods are generally intended for manual brake use and available in two bores sizes, 7/8" or 15/16", and two finishes, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and left-hand side bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

CA Prop 65

Wilwood 261-14962-BK Specifications

KEY SPECS
MFG. Part #	261-14962-BK
Brand	Wilwood
Master Cylinder Bore Size	15/16 Inch
Master Cylinder Material	Aluminum
Finish	E-Coat

GENERAL
Outlet Count	Tandem
Reservoir Type	Integral
Stroke	1.1"
Reservoir Size (cu in)	14.0 / 8.5
Area	0.690 sq. in.
Outlet Fitting	3/8"-24 IFF or 1/2"-20 IFF
Overall Length	10.93"
GTIN Code	889545085556
