Product Summary

Universal Fit, Firewall/Frame Position, Media Burnished

    Key Specs

    MFG. Part #261-14249-P
    BrandWilwood
    Master Cylinder Bore Size7/8 Inch
    Master Cylinder MaterialAluminum
    FinishMedia Burnished

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Wilwood 261-14249-P Details

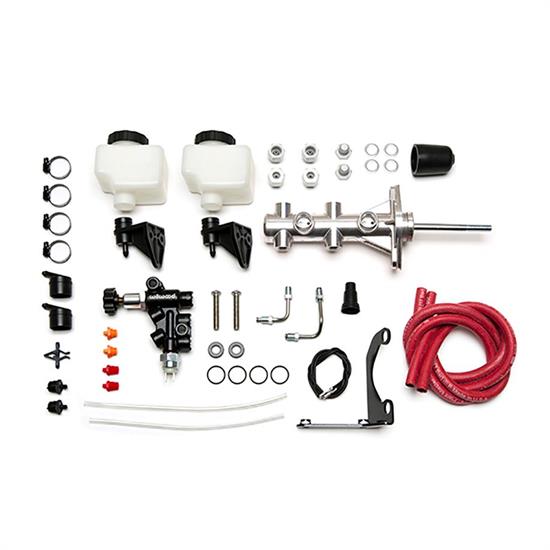

    Wilwood has packaged the new Remote Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Wilwood's Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability.

    Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

    • 7/8" bore size
    • Polished finish
    • Sold as a kit

    Charts

    Wilwood 261-14249-P Specifications

    KEY SPECS
    MFG. Part #261-14249-P
    BrandWilwood
    Master Cylinder Bore Size7/8 Inch
    Master Cylinder MaterialAluminum
    FinishMedia Burnished
    GENERAL
    PositionFirewall/Frame
    Brake System TypeDisc
    Outlet CountTandem
    Reservoir TypeRemote
    Stroke1.1"
    ColorNatural
    Reservoir IncludedYes
    Number of Mounting Holes2
    Reservoir MaterialABS Plastic
    Reservoir Size (cu in)12.6
    Fluid Capacity7.0 oz.
    Area0.6 sq. in.
    Master Cylinder Cap IncludedYes
    Hardware IncludedYes
    Pushrods IncludedYes
    Mounting Bracket IncludedYes
    Outlet Fitting3/8"-24 IFF or 1/2"-20 IFF
    Outlet Fitting 23/8"-24 IFF or 9/16"-18 IFF
    Overall Length10.76"
    Mounted Length6.56"
    Centerline of Holes3.2"
    Hose ID0.25"
    Sold in QuantityKit
    GTIN Code889545078213
