Part # 83526113626P

Wilwood 261-13626-P H/V Tandem Master Cylinder Kit, 15/16 Inch Bore

by

|

  • The master cylinder represents the latest in refinements in brake pressure actuation and fluid control
  • A slotted flange mounting makes it easy to work on many OE mounts and Chrysler, Corvette, GM, and Ford Mustang as well
  • Engineered to be compatible with manual or power brake system applications

$381.91

each

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before November 8th.


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, Firewall Position, Tandem Outlet Count

  • The master cylinder represents the latest in refinements in brake pressure actuation and fluid control
  • A slotted flange mounting makes it easy to work on many OE mounts and Chrysler, Corvette, GM, and Ford Mustang as well
  • Engineered to be compatible with manual or power brake system applications
  • Master cylinders are available in three bores sizes, 7/8" , 1" or 1-1/8" to better suit your application
  • A combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems

Key Specs

PositionFirewall
Brake System TypeDisc
Outlet CountTandem
Reservoir TypeIntegral
Master Cylinder Bore Size15/16 Inch

Need To Know

This Product Will Ship Free

Need help? Call 800.979.0122

Quick and Easy Returns

Details

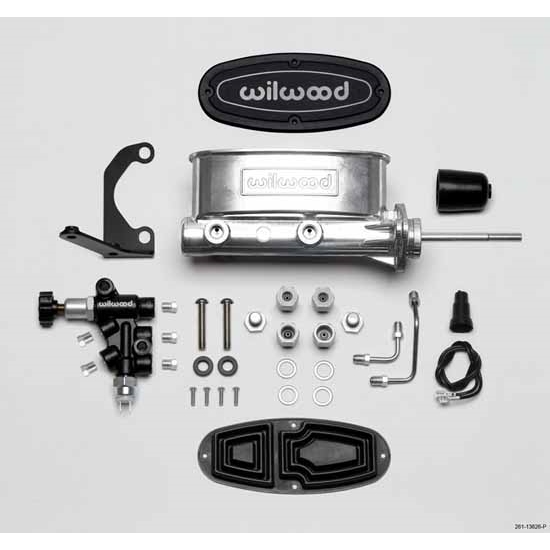

Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders are available in three bores sizes, 7/8" , 1" or 1-1/8" , and three finishes, standard, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Specifications

KEY SPECS
MFG. Part #261-13626-P
PositionFirewall
Brake System TypeDisc
Outlet CountTandem
Reservoir TypeIntegral
Master Cylinder Bore Size15/16 Inch
GENERAL
Stroke1.1"
Master Cylinder MaterialAluminum
FinishPolished
Reservoir IncludedYes
Number of Mounting Holes2
Reservoir MaterialAluminum
Reservoir Size (cu in)14.4 or 8.7
Fluid Capacity8.0 / 4.8 fl oz.
Area0.69 sq. in.
Master Cylinder Cap IncludedYes
Hardware IncludedYes
Pushrods IncludedNo
Mounting Bracket IncludedYes
Outlet Fitting3/8"-24 IF or 1/2"-20 IF
Outlet Fitting 23/8"-24 IF or 9/16"-18 IF
Overall Length12.26"
Mounted Length8.15"
Centerline of Holes3.2"
Sold in QuantityKit
GTIN Code889545068214
