Part # 83526113626

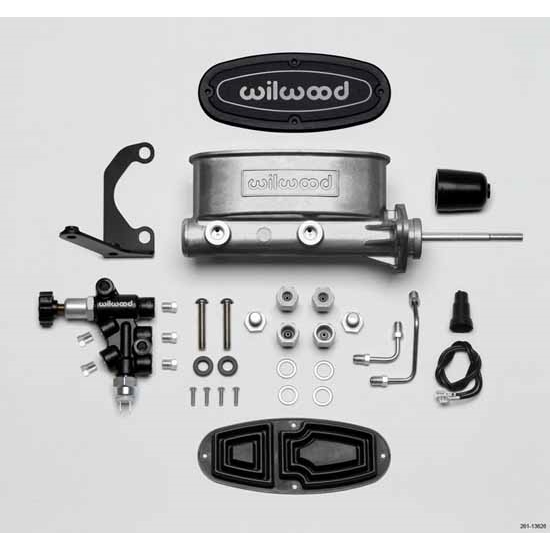

Wilwood 261-13626 H/V Tandem Master Cylinder Kit, 15/16 Inch Bore

by

|

$342.18

each

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before November 15th.


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, Firewall Position, Tandem Outlet Count

    Key Specs

    MFG. Part #261-16326
    PositionFirewall
    Brake System TypeDisc
    Outlet CountTandem
    Reservoir TypeIntegral

    Need To Know

    This Product Will Ship Free

    Need help? Call 800.979.0122

    Quick and Easy Returns

    Details

    Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders are available in three bores sizes, 7/8" , 1" or 1-1/8" , and three finishes, standard, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

    Specifications

    KEY SPECS
    MFG. Part #261-16326
    BrandWilwood
    PositionFirewall
    Brake System TypeDisc
    Outlet CountTandem
    Reservoir TypeIntegral
    GENERAL
    Master Cylinder Bore Size15/16 Inch
    Stroke1.1"
    Master Cylinder MaterialAluminum
    FinishNatural
    Reservoir IncludedYes
    Number of Mounting Holes2
    Reservoir MaterialAluminum
    Reservoir Size (cu in)14.4 or 8.7
    Fluid Capacity8.0 / 4.8 fl oz.
    Area0.69 sq. in.
    Master Cylinder Cap IncludedYes
    Hardware IncludedYes
    Pushrods IncludedNo
    Mounting Bracket IncludedYes
    Outlet Fitting3/8"-24 IF or 1/2"-20 IF
    Outlet Fitting 23/8"-24 IF or 9/16"-18 IF
    Overall Length12.26"
    Mounted Length8.15"
    Centerline of Holes3.2"
    Sold in QuantityKit
    GTIN Code889545068191
