Part # 8352609439

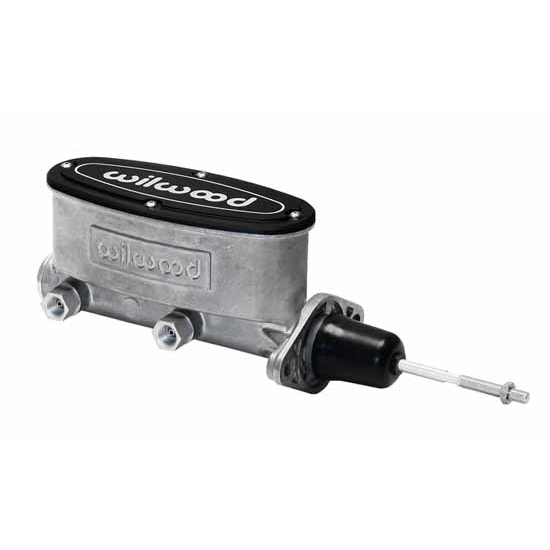

Wilwood 260-9439 H/V Tandem Master Cylinder w/Pushrod, 7/8 Inch Bore

by

|

  • Designed primarily for manual applications and include a pushrod
  • Will mount to flanges from 3.22" to 3.40"
  • Master cylinder includes fluid outlet ports on both sides of the bore

$219.95

each

In Stock


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, Firewall Position, Tandem Outlet Count

  • Designed primarily for manual applications and include a pushrod
  • Will mount to flanges from 3.22" to 3.40"
  • Master cylinder includes fluid outlet ports on both sides of the bore
  • Stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers
  • Machined from high-pressure die cast aluminum

Key Specs

PositionFirewall
Brake System TypeDisc
Outlet CountTandem
Reservoir TypeIntegral
Master Cylinder Bore Size7/8 Inch

Need To Know

This Product Will Ship Free

Need help? Call 800.979.0122

Quick and Easy Returns

Details

Wilwood's 7/8" or 15/16" bore Tandem Aluminum Master Cylinders available in 3 finishes, plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include a pushrod. They're designed for mount flanges from 3.22" to 3.40" , common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit.

Charts

Specifications

KEY SPECS
MFG. Part #260-9439
PositionFirewall
Brake System TypeDisc
Outlet CountTandem
Reservoir TypeIntegral
Master Cylinder Bore Size7/8 Inch
GENERAL
Stroke1.1"
Master Cylinder MaterialAluminum
FinishNatural
Reservoir IncludedYes
Number of Mounting Holes2
Reservoir MaterialAluminum
Reservoir Size (cu in)14.4 or 8.7
Fluid Capacity8.0 / 4.8 fl oz.
Area0.6 sq. in.
Master Cylinder Cap IncludedYes
Hardware IncludedNo
Pushrods IncludedYes
Mounting Bracket IncludedNo
Outlet Fitting3/8"-24 IF or 1/2"-20 IF
Outlet Fitting 23/8"-24 IF or 9/16"-18 IF
Overall Length12.26"
Mounted Length8.15"
Centerline of Holes3.22"
Sold in QuantityEach
GTIN Code889545068030
