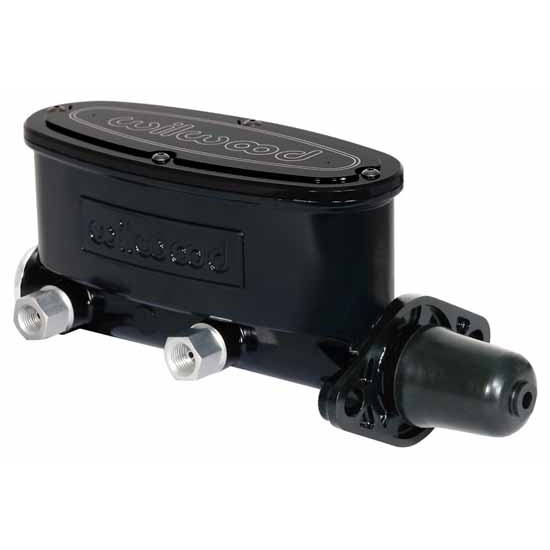

Wilwood 260-8555-BK High Volume Tandem Master Cylinder, 1 Inch Bore
Wilwood 260-8555-BK High Volume Tandem Master Cylinder, 1 Inch Bore

Wilwood 260-8555-BK High Volume Tandem Master Cylinder, 1 Inch Bore

Universal Fit, Firewall Position, Disc Brake System Type, Tandem Outlet Count, EDP Coated

2 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 260-8555-BK High Volume Tandem Master Cylinder, 1 Inch Bore
Wilwood 260-8555-BK High Volume Tandem Master Cylinder, 1 Inch Bore
Wilwood 260-8555-BK High Volume Tandem Master Cylinder, 1 Inch Bore
Wilwood 260-8555-BK High Volume Tandem Master Cylinder, 1 Inch Bore
X
Wilwood 260-8555-BK High Volume Tandem Master Cylinder, 1 Inch Bore
Wilwood 260-8555-BK High Volume Tandem Master Cylinder, 1 Inch Bore
Zoomed In Image
Part # 8352608555BK
Save 7%
$239.95
$259.14
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • 1" bore is designed to be used in manual and power assisted applications
  • Stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers
  • Machined from high-pressure die castings and weighs only 3 lbs.
  • Features a black EDP finish of added style and rust protection
  • Has an overall length of 8.76" and the mounted length measures 8.15"

Details

Position:
Firewall
Brake System Type:
Disc
Outlet Count:
Tandem
Reservoir Type:
Integral
Master Cylinder Bore Size:
1 Inch
Stroke:
1.1"
Master Cylinder Material:
Aluminum
Finish:
EDP Coated
Color:
Black
Reservoir Included:
Yes
Reservoir Material:
Aluminum
Reservoir Size (cu in):
14.4 or 8.7
Fluid Capacity:
8.0 / 4.8 fl oz.
Area:
0.78 sq. in.
Master Cylinder Cap Included:
Yes
Hardware Included:
No
Pushrods Included:
No
Mounting Bracket Included:
No
Outlet Fitting:
3/8"-24 IF or 1/2"-20 IF
Outlet Fitting 2:
3/8"-24 IF or 9/16"-18 IF
Overall Length:
8.76"
Mounted Length:
8.15"
Centerline of Holes:
3.22"
MFG. Part #:
260-8555-BK
Sold in Quantity:
Kit
GTIN Code:
889545067965

Info

Wilwood's Tandem Aluminum Master Cylinder is available in 4 bore sizes, 7/8" , 15/16" , 1.00" and 1.125" ; and 3 finishes, plain, ball burnished and black e-coat. 7/8" & 15/16" bore master cylinders are designed primarily for manual applications and include a pushrod. The 1" bore can be used in manual and power assisted applications and does not come with a pushrod. The 1.125" bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems. They're designed for mount flanges from 3.22" to 3.40" , common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN 260-13190, or 220-13189 for retrofit kit.
