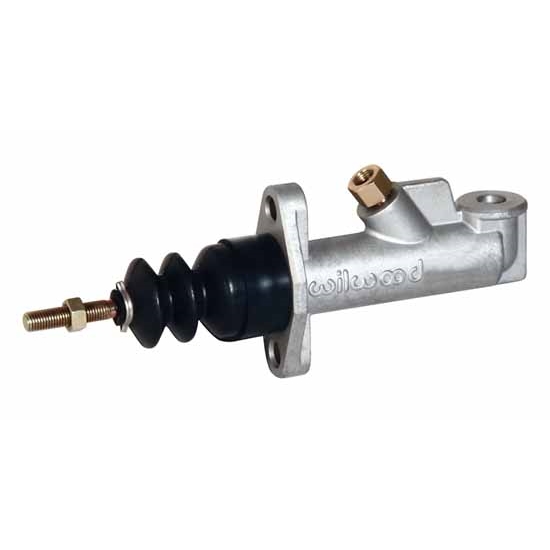

Product Summary

Universal Fit, Firewall Position, Single Outlet Count

  • Aluminum cylinders are designed to be used with either a detachable or remote fill reservoir
  • Available in three bore sizes from .625" to .75"
  • A full 1.4" of stroke to accommodates short pedal ratios, small brake calipers, and hydraulic clutches
  • Outlet fitting is dimension is 3/8"-24 IF Female
  • Overall length is 7.97 and mounted length is 4.1"

Key Specs

MFG. Part #260-6089
BrandWilwood

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Remote Reservoir Compact Master Cylinders are the perfect solution for club sport racers, small open wheel cars, or any other custom application where there is limited space for the master cylinder and fluid reservoir. Aluminum cylinders designed for use with either a detachable or remote fill reservoir. Available in three bore sizes from .625" to .75" with a full 1.4" of stroke to accommodate short pedal ratios, small brake calipers, and hydraulic clutch actuation on space limited application.

Specifications

KEY SPECS
MFG. Part #260-6089
BrandWilwood
GENERAL
PositionFirewall
Brake System TypeDisc
Outlet CountSingle
Reservoir TypeRemote
Master Cylinder Bore Size3/4 Inch
Stroke1.4"
Master Cylinder MaterialAluminum
FinishNatural
Reservoir IncludedNo
Area0.44 sq. in.
Volume0.61 cu. in.
Outlet Fitting3/8"-24 IFF
Overall Length7.97"
Mounted Length4.1"
Sold in QuantityEach
GTIN Code889545067835
