#83526015541BK

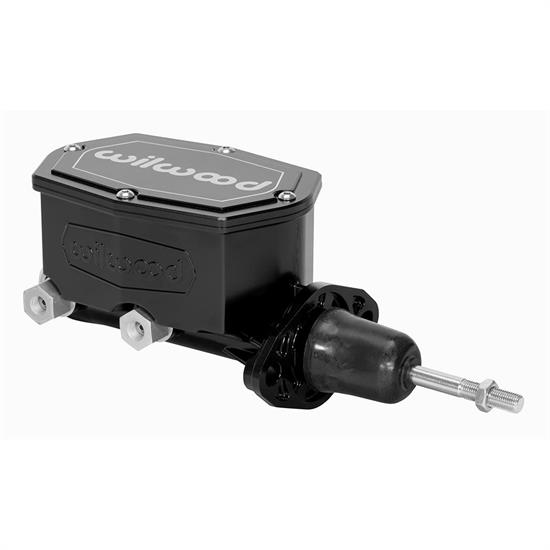

Wilwood 260-15541-BK Compact Tandem Master Cylinder w/ Pushrod
$365.21
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#83526015541BK
$365.21
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 260-15541-BK |
| Brand | Wilwood |
| Master Cylinder Bore Size | 1-1/8 Inch |
| Master Cylinder Material | Aluminum |
| Finish | E-Coat |
Need help?
855.313.9176Quick and Easy Returns
Return Policy
Wilwood’s Compact Tandem Master Cylinders w/ Pushrod available 4 bore sizes from 7/8" to 1-1/8th and in 2 finishes; ball burnished and black e-coat. These master cylinders are designed primarily for manual applications and include a pushrod. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.
Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 260-15541-BK |
| Brand | Wilwood |
| Master Cylinder Bore Size | 1-1/8 Inch |
| Master Cylinder Material | Aluminum |
| Finish | E-Coat |
| GENERAL | |
| Outlet Count | Tandem |
| Reservoir Type | Integral |
| Stroke | 1.10" |
| Reservoir Size (cu in) | 14.0 / 8.5 |
| Area | 0.970 sq. in. |
| Outlet Fitting | 3/8"-24 IFF or 1/2"-20 IFF |
| Overall Length | 10.93" |
| GTIN Code | 889545088649 |
