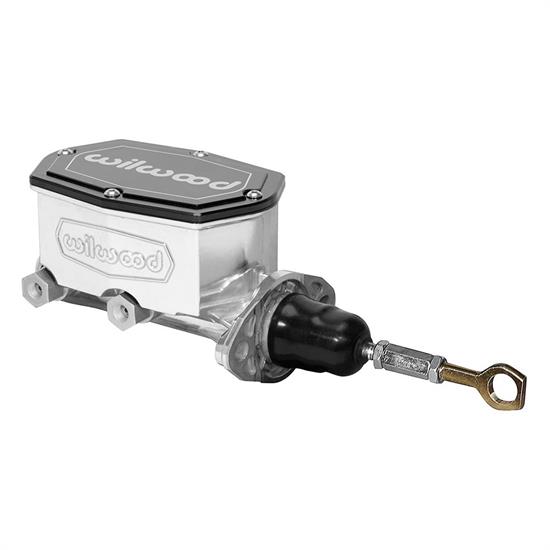

Wilwood 260-15521-P Compact Tandem Master for Classic Mustang
Wilwood 260-15521-P Compact Tandem Master for Classic Mustang

Wilwood 260-15521-P Compact Tandem Master for Classic Mustang

Tandem Outlet Count, Integral Reservoir Type, 15/16 Inch Master Cylinder Bore Size

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 260-15521-P Compact Tandem Master for Classic Mustang
Wilwood 260-15521-P Compact Tandem Master for Classic Mustang
Wilwood 260-15521-P Compact Tandem Master for Classic Mustang
Wilwood 260-15521-P Compact Tandem Master for Classic Mustang
X
Wilwood 260-15521-P Compact Tandem Master for Classic Mustang
Wilwood 260-15521-P Compact Tandem Master for Classic Mustang
Zoomed In Image
We estimate this item will ship on or before June 9th.
Part # 83526015521P
$296.06
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Outlet Count:
Tandem
Reservoir Type:
Integral
Master Cylinder Bore Size:
15/16 Inch
Stroke:
1.10"
Master Cylinder Material:
Aluminum
Finish:
Media Burnished
Reservoir Size (cu in):
14.0 / 8.5
Area:
0.690 sq. in.
Outlet Fitting:
3/8-24 IF or 1/2-20 IF
Overall Length:
12.32"
MFG. Part #:
260-15521-P
GTIN Code:
889545088618

Info

Wilwood’s Compact Tandem Master Cylinder for Mustangs comes with the correct pushrod; 4 bore sizes; 7/8" through 1-1/8th and is available in 2 finishes ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They’re designed for mount flanges from 3.22” to 3.40”, which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.

Installation Instructions (PDF)

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 15 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
