Product Summary

Universal Fit, 7.85" Overall Length, 1.25" Stroke

    Key Specs

    MFG. Part #260-15092
    BrandWilwood

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

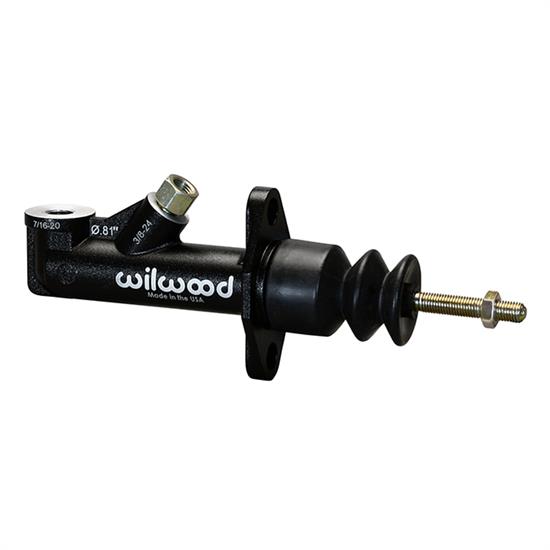

    Wilwood introduces new GS Compact Remote Master Cylinders. New master cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.

    • 0.81" bore size
    • Aluminum construction
    • Black E-Coat finish
    • 7.85" overall length
    • Sold each

    Specifications

    KEY SPECS
    MFG. Part #260-15092
    BrandWilwood
    GENERAL
    Overall Length7.85"
    Stroke1.25"
    Bore Size0.8125"
    Material TypeAluminum
    Sold in QuantityEach
    GTIN Code889545074369
    Area0.52 sq. in.
    Volume0.65 cu. in.
    TypeSingle Outlet
    Outlets1
    FinishEDP Coated
    Flange to End Length4.1"
    Outlet Fit3/8-24 IF Female
    Reservoir TypeRemote
    ColorBlack
