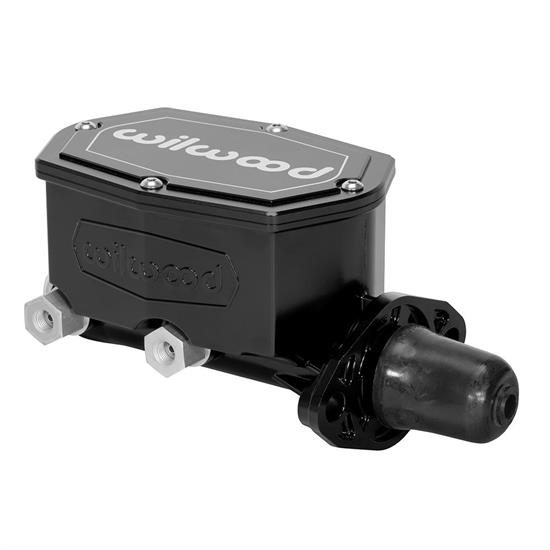

Wilwood 260-14960-BK Compact Tandem Master Cylinder

#83526014960BK

Wilwood 260-14960-BK Compact Tandem Master Cylinder

Available in 2 bore sizes: 1.00” and 1-1/8”
Choose between ball burnished and black e-coat finish
Designed for mount flanges from 3.22” to 3.40”

Finish:

Black E-Coat

$365.21

/each

Factory Shipped

$381.09

Save $15.88

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Tandem Outlet Count, E-Coat

Available in 2 bore sizes: 1.00” and 1-1/8”
Choose between ball burnished and black e-coat finish
Designed for mount flanges from 3.22” to 3.40”
Volume ratio is 2:1 between the primary and secondary chambers
Machined from high-pressure die castings

See more details

Key Specs

MFG. Part #	260-14960-BK
Brand	Wilwood
Master Cylinder Bore Size	1-1/8 Inch
Master Cylinder Material	Aluminum
Finish	E-Coat

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 260-14960-BK Details

Wilwood’s Compact Tandem Master Cylinder is available in 2 bore sizes 1.00” and 1-1/8” and 2 finishes; ball burnished and black e-coat. The 1” bore can be used in manual and power assisted applications and does not come with a pushrod. The 1-1/8” bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.

Charts

Installation Instructions (PDF)

Guides & Documents

Master Cylinders Installation Instructions (83526014960BK)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 260-14960-BK Specifications

KEY SPECS
MFG. Part #	260-14960-BK
Brand	Wilwood
Master Cylinder Bore Size	1-1/8 Inch
Master Cylinder Material	Aluminum
Finish	E-Coat

GENERAL
Outlet Count	Tandem
Reservoir Type	Integral
Stroke	1.1"
Reservoir Size (cu in)	14.0 / 8.5
Area	0.970 sq. in.
Outlet Fitting	3/8"-24 IFF or 1/2"-20 IFF
Overall Length	7.16"
GTIN Code	889545085518
