Add to Cart
$259.21

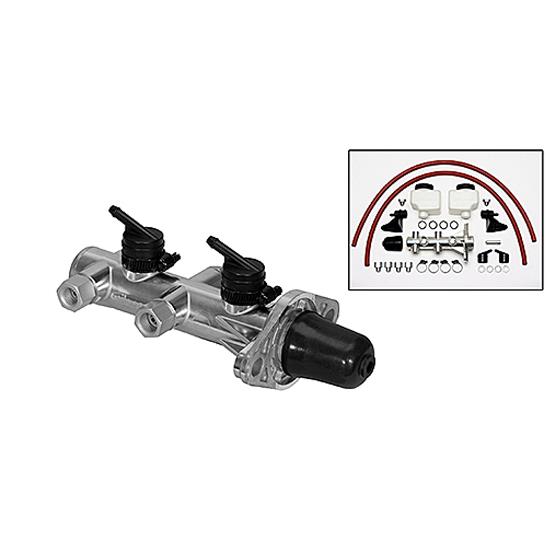

Wilwood 260-14244-P Remote Tandem Master Cylinder, Polished
Wilwood 260-14244-P Remote Tandem Master Cylinder, Polished

Wilwood 260-14244-P Remote Tandem Master Cylinder, Polished

Universal Fit, Disc Brake System Type, Tandem Outlet Count, Remote Reservoir Type, Natural

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 260-14244-P Remote Tandem Master Cylinder, Polished
Wilwood 260-14244-P Remote Tandem Master Cylinder, Polished
Wilwood 260-14244-P Remote Tandem Master Cylinder, Polished
X
Wilwood 260-14244-P Remote Tandem Master Cylinder, Polished
Zoomed In Image
We estimate this item will ship on or before October 23rd.
Part # 83526014244P
$259.21
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Brake System Type:
Disc
Outlet Count:
Tandem
Reservoir Type:
Remote
Master Cylinder Bore Size:
1-1/8 Inch
Stroke:
1.12"
Master Cylinder Material:
Aluminum
Finish:
Media Burnished
Color:
Natural
Reservoir Included:
Yes
Number of Mounting Holes:
2
Reservoir Material:
ABS Plastic
Reservoir Size (cu in):
12.6
Fluid Capacity:
7.0 oz.
Area:
0.97 sq. in.
Master Cylinder Cap Included:
Yes
Hardware Included:
No
Pushrods Included:
Yes
Mounting Bracket Included:
Yes
Outlet Fitting:
1/2"-20
Outlet Fitting 2:
1/2"-20
Overall Length:
7.16"
Mounted Length:
6.356"
Centerline of Holes:
3.22"
Hose ID:
0.25"
MFG. Part #:
260-14244-P
Sold in Quantity:
Kit
GTIN Code:
889545078183

Info

The 1-1/8” bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid-1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders.

  • 1-1/8" Bore Size
  • 1.12" Stroke at 2:1 volume ratio
  • Remote Reservoir
  • Tandem Outlet
  • Polished Aluminum Construction

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
